YG-1

TAP FLUTE SPL RH M4X0.7 D4 RH 2 BRT NO M

tap flute spl rh m4x0.7 d4 rh 2 brt no m

Stellar Part #YG1TO BW244

MFG Part #BW244

MFG Name:YG-1 Tool

Product Description:

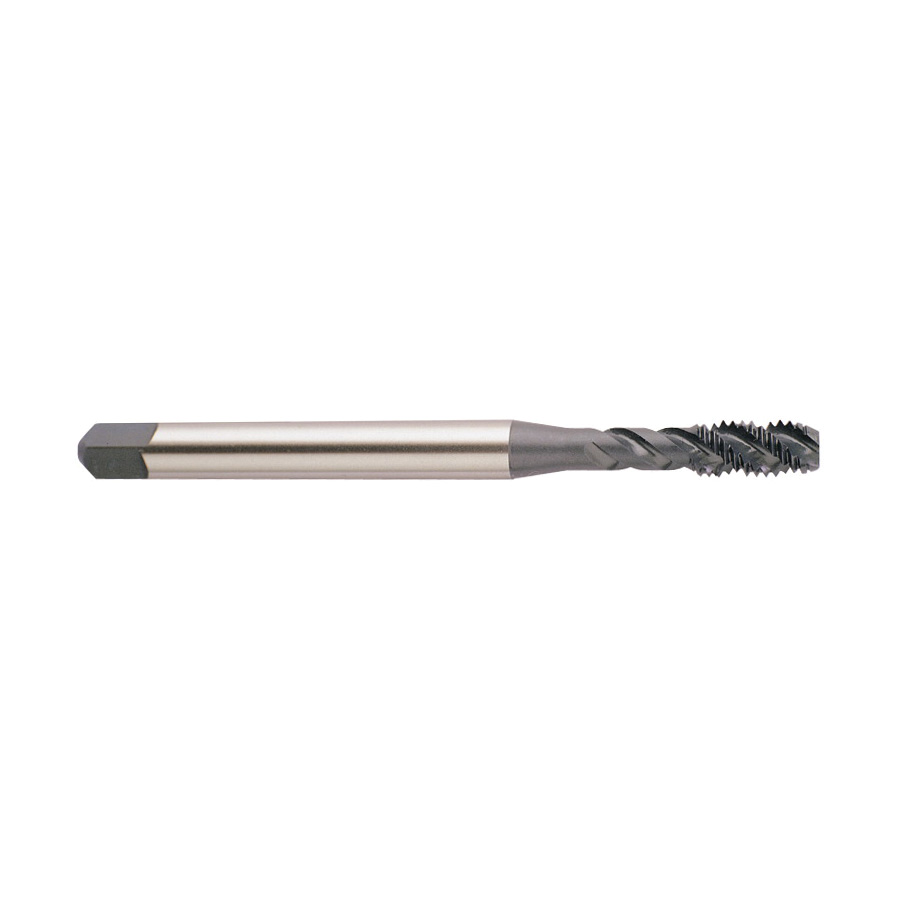

YG-1 BW244 High Performance Square Shank Spiral Flute Tap, Right Hand Cutting, M4x0.7 Thread, D4 Thread Limit, 2P-3P Modified Bottoming Chamfer, Right Hand Flute Direction, 2 Flutes, Uncoated, HSSE-V3

Technical Specifications
Resources

Country of Origin:

Manufacturer Name:

YG-1 Tool

Chamfer Type:

2P-3P Modified Bottoming

Class of Fit:

Cutting Direction:

Right Hand

Finish/Coating:

Bright, Uncoated

Flute Direction:

Right Hand

Material:

HSSE-V3

Material Application:

Pure Aluminum/Aluminum Alloy and Die-Cast Aluminum Alloy

Measurement System:

Metric

Number of Flutes:

Overall Length:

54.1 mm

Series:

BW Series

Shank Diameter:

4.27 mm

Size:

3.3634 mm

Thread Length:

7.06 mm

Thread Limit:

Thread Size:

M4x0.7

Thread Standard:

Through Coolant (Yes/No):

Type:

High Performance Square Shank

: Country of Origin:
KR
Manufacturer Name:
YG-1 Tool
Chamfer Type:
2P-3P Modified Bottoming
Class of Fit:
6H
Cutting Direction:
Right Hand
Finish/Coating:
Bright, Uncoated
Flute Direction:
Right Hand
Material:
HSSE-V3
Material Application:
Pure Aluminum/Aluminum Alloy and Die-Cast Aluminum Alloy
Measurement System:
Metric
Number of Flutes:
2
Overall Length:
54.1 mm
Series:
BW Series
Shank Diameter:
4.27 mm
Size:
3.3634 mm
Thread Length:
7.06 mm
Thread Limit:
D4
Thread Size:
M4x0.7
Thread Standard:
M
Through Coolant (Yes/No):
No
Type:
High Performance Square Shank
