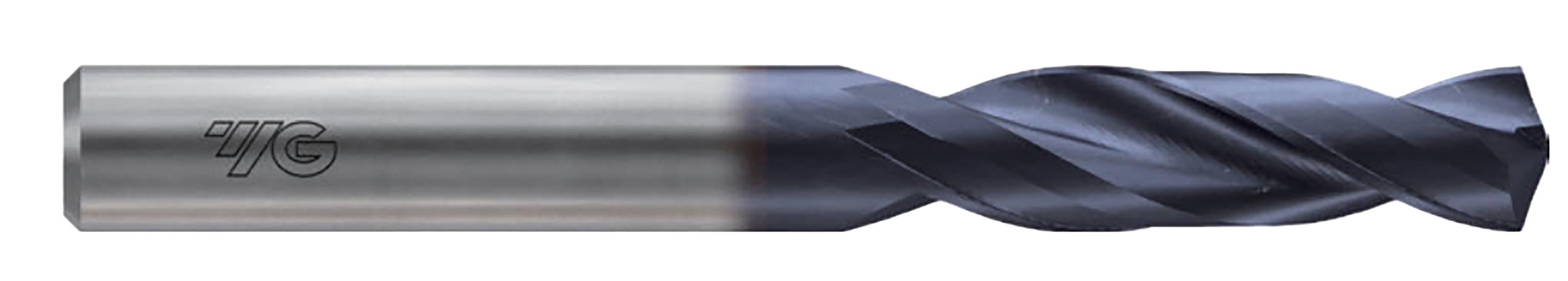

YG-1 DB301090 DB301 General Purpose Jobber Drill Bit, 28/79 Drill - Fraction, 9 mm Drill - Metric, 0.35 in Drill - Decimal Inch, 140 deg Point Angle, TiAlN
jobber lg dr bit 28/79 9mm 0.35in 140deg
Stellar Part #YG1TO DB301090
MFG Part #DB301090
MFG Name:YG-1 Tool
Product Description:
YG-1, DB301090, Jobber Drill Bit, General Purpose, Series: DB301, Metric, 28/79 Drill - Fraction, 9 mm Drill - Metric, 0.35 in Drill - Decimal Inch, 3.3071 in Overall Length, 2 Flutes, 40 mm Flute Length, 9 mm Shank, 140 deg Point, R-Thinning Point, Right Hand Cutting Direction, Carbide Cutting Edge, Through Coolant (Yes/No): No, TiAlN, Applicable Materials: Cast Iron/Steel
Login For Price
- Technical Specifications
- Resources
- Country of Origin:KRManufacturer Name:YG-1 ToolApplicable Materials:Cast Iron/SteelCutting Direction:Right HandCutting Edge Material:CarbideDrill Diameter Measurement System:MetricDrill Size - Decimal Inch:0.35 inDrill Size - Fraction:28/79Drill Size - Metric:9 mmFinish:TiAlNFlute Length:40 mmMaterial:CarbideNumber of Flutes:2Overall Length:3.3071 inPoint Angle:140 degPoint Type:R-ThinningSeries:DB301Shank Size:9 mmThrough Coolant (Yes/No):NoType:General Purpose
