YG-1

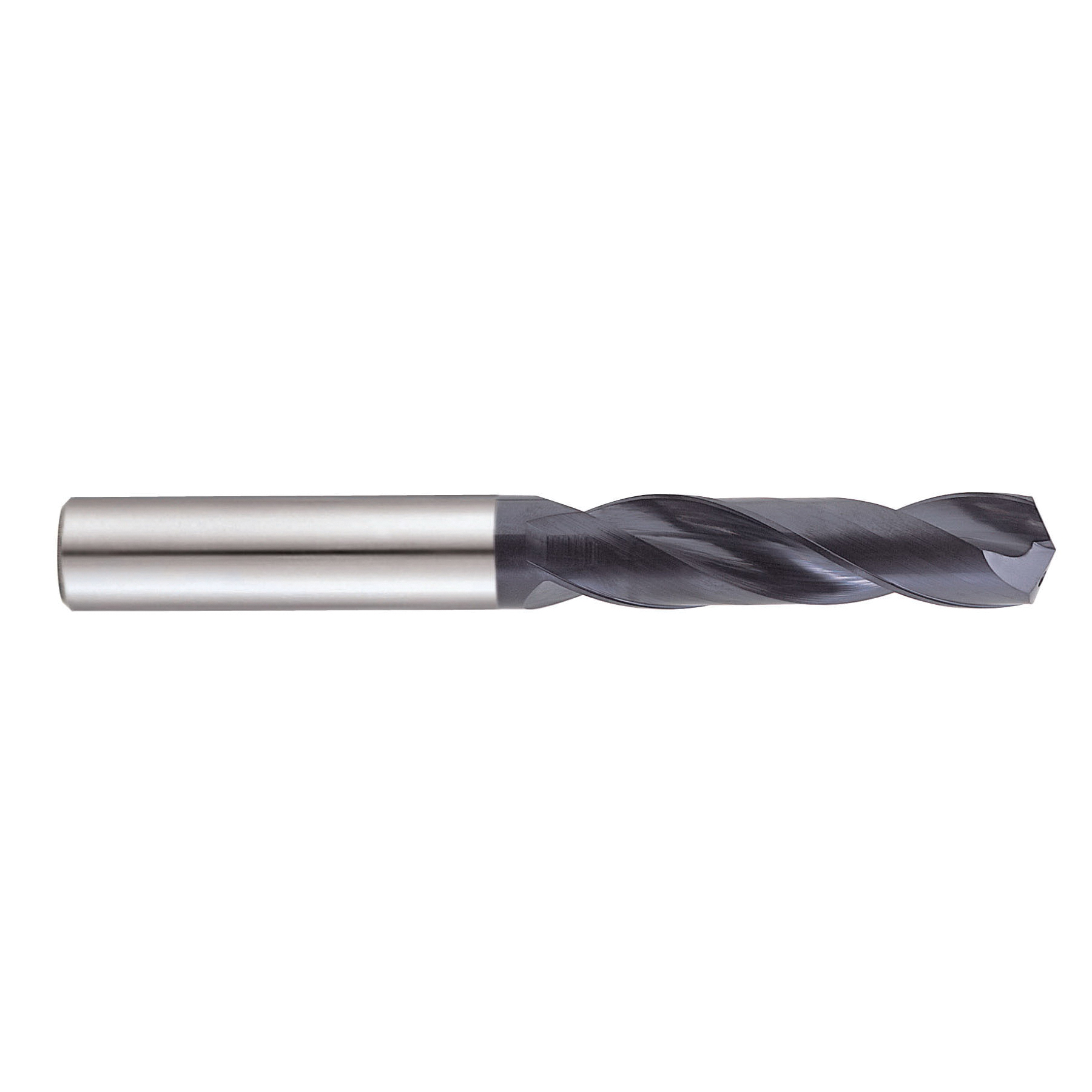

DRILL DREAM LG STUB 9.3472MM 0.368IN 3XD
drill dream lg stub 9.3472mm 0.368in 3xd
Stellar Part #YG1TO DH406021L
MFG Part #DH406021L
MFG Name:YG-1 Tool
Product Description:
YG-1 DH406021L General Purpose Stub Length Dream Drill With Through Coolant 9.3472 mm Drill - Metric 0.368 in Drill - Decimal Inch Micrograin Carbide TiAlN Coated
Login For Price
- Item Features
- Technical Specifications
- Resources
- Self-centering and chip breaking by R-thinning
- Wave shape and negative land on the cutting edge for low thrust, stable torque and long tool life
- Optimized flute shape for strength of drilling and smooth chip evacuation
- Self-centering and chip breaking by R-thinning
- Wave shape and negative land on the cutting edge for low thrust, stable torque and long tool life
- Optimized flute shape for strength of drilling and smooth chip evacuation
- Applicable Materials:Carbon Steel, Alloy Steel and Pre-Hardened SteelCutting Depth:3XDCutting Direction:Right HandCutting Edge Material:Micrograin CarbideDrill Diameter Measurement System:MetricDrill Size - Decimal Inch:0.368 inDrill Size - Metric:9.3472 mmFinish:TiAlN CoatedFlute Length:47 mmFlute Type:SpiralMaterial:Micrograin CarbideNumber of Flutes:2Overall Length:89 mmPoint Angle:140 degPoint Type:Self-CenteringSeries:DH406Shank Size:10 mmShank Type:StraightType:General Purpose
