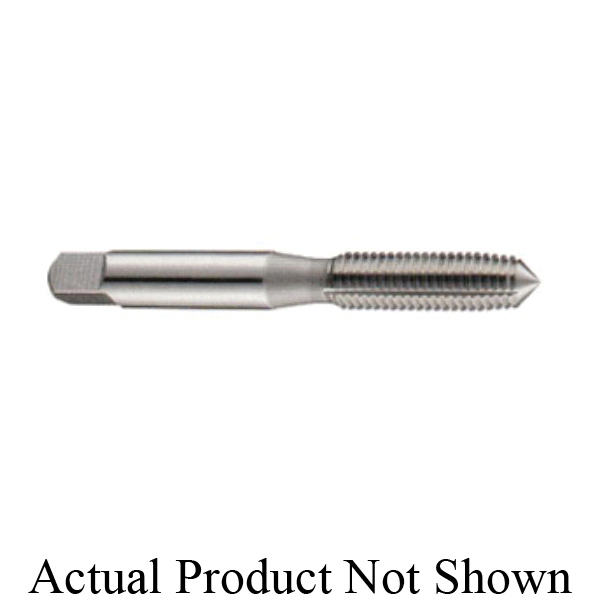

YG-1 ZD287 ZD Single End Straight Flute Forming Tap With Oil Groove, M5x0.8 Thread, D7 Thread Limit

YG-1 ZD287 ZD Single End Straight Flute Forming Tap With Oil Groove, M5x0.8 Thread, D7 Thread Limit

m5 - 0.8 d7 roll form tap w/ oil grv

Stellar Part #YG1TO ZD287

MFG Part #ZD287

MFG Name:YG-1 Tool

Product Description:

YG-1 Forming Tap, Single End Straight Flute, Series: ZD, Measurement System: Metric, M5x0.8, UNF, 1.5P-2P Bottoming Chamfer, 0.63 in Thread Length, 2.3740000000000001 in Overall Length, 4 Flutes, Right Hand Cutting, 0.19400000000000001 in Shank Dia, 1.744 in Shank Length, HSS-E-V3, TiCN Coated, D7 Thread Limit
Login For Price
Chamfer Type
1.5P-2P Bottoming
Cutting Direction
Right Hand
Finish/Coating
TiCN Coated
Material
HSS-E-V3
Measurement System
Metric
Number of Flutes
4
Overall Length
2.374 in, 2.3740000000000001 in
Series
ZD
Shank Diameter
0.194 in, 0.19400000000000001 in
Shank Length
1.744 in
Thread Length
0.63 in
Thread Limit
D7
Thread Size
M5x0.8
Thread Standard
UNF
Type
Single End Straight Flute
