Stellar Industrial | INS MIL 745R 2109 CARB 1020 K 745R-2109E

content loaded

Sandvik Coromant

INS MIL 745R 2109 CARB 1020 K 745R-2109E

ins mil 745r 2109 carb 1020 k 745r-2109e

Stellar Part #SANCO 7046685

MFG Part #7046685

MFG Name:Sandvik Coromant

Product Description:

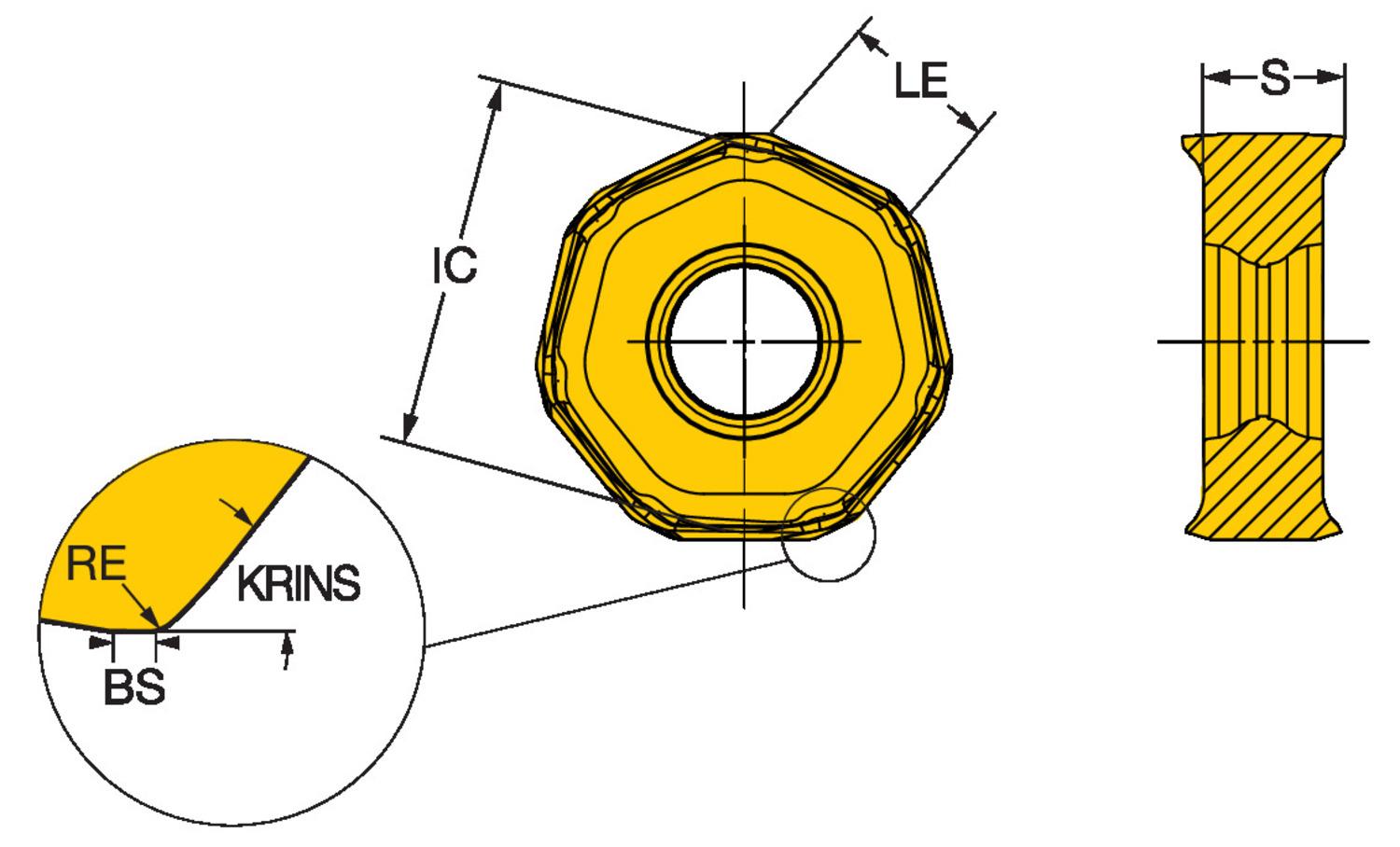

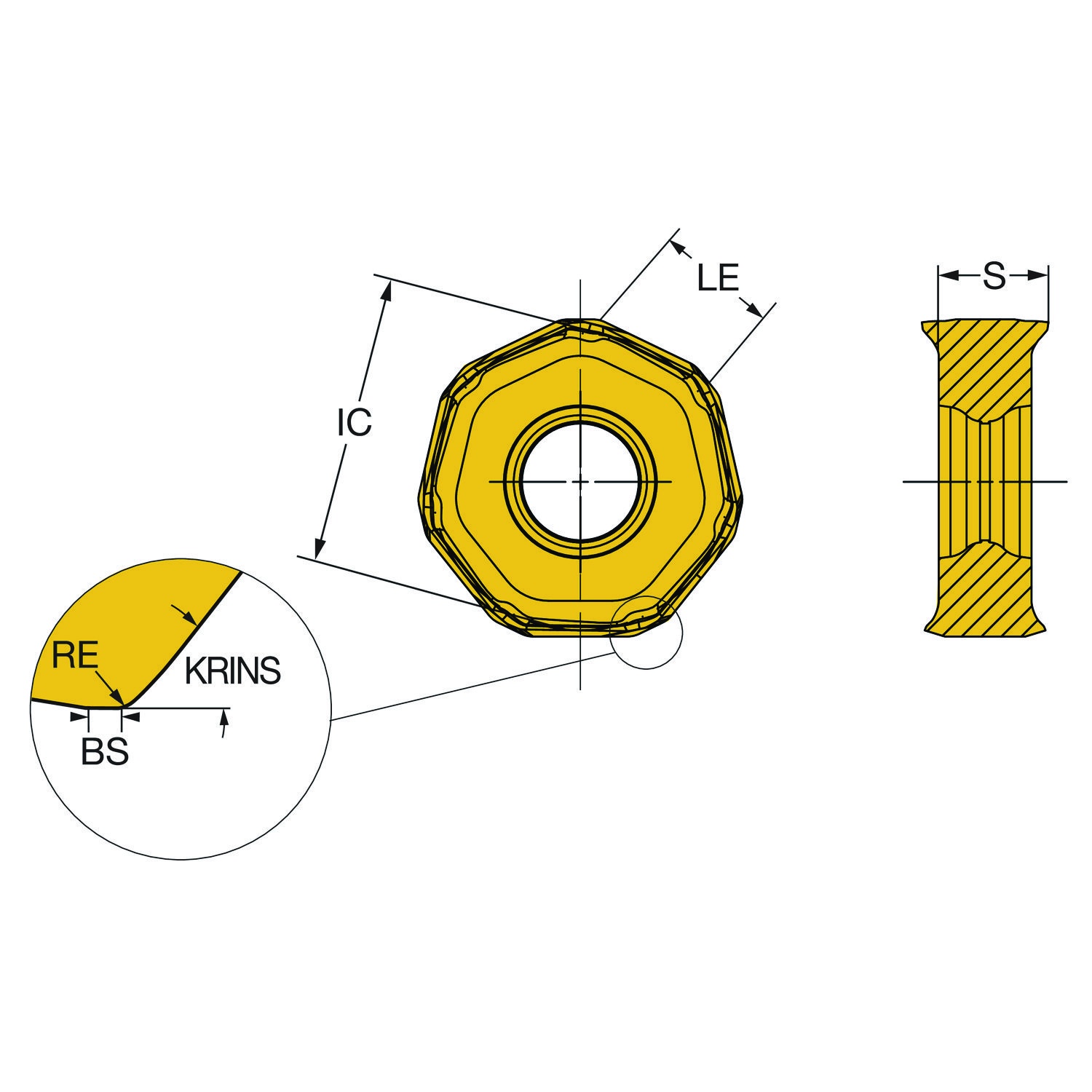

Sandvik Coromant 7046685 CoroMill 745 Milling Insert, ANSI Code: 745R-2109E-M31 1020, 745R Insert, 2109 Insert, Carbide, Manufacturers Grade: 1020, Heptagon Shape, Material Grade: K

UOM:

Technical Specifications
Resources

ANSI Code:

745R-2109E-M31 1020

Chipbreaker:

M31

Corner Radius:

0.039 in

Finish:

PVD Coated

Hand of Insert:

Right

Inscribed Circle:

0.827 in

Insert Size:

2109

Insert Style:

745R

ISO Code:

745R-2109E-M31 1020

Lead Angle:

42 deg

Manufacturer's Grade:

1020

Material:

Carbide

Material Application:

Cast Iron

Material Grade:

Rake:

Positive

Series:

CoroMill® 745

Shape:

Heptagon

Thickness:

0.354 in

: ANSI Code:
745R-2109E-M31 1020
Chipbreaker:
M31
Corner Radius:
0.039 in
Finish:
PVD Coated
Hand of Insert:
Right
Inscribed Circle:
0.827 in
Insert Size:
2109
Insert Style:
745R
ISO Code:
745R-2109E-M31 1020
Lead Angle:
42 deg
Manufacturer's Grade:
1020
Material:
Carbide
Material Application:
Cast Iron
Material Grade:
K
Rake:
Positive
Series:
CoroMill® 745
Shape:
Heptagon
Thickness:
0.354 in
