Stellar Industrial | CCMT2(15)1WF1625

content loaded

Sandvik Coromant

CCMT2(15)1WF1625

turn insr ccmt 0602 80deg rhombic 18deg

Stellar Part #SANCO 8864532

MFG Part #8864532

MFG Name:Sandvik Coromant

Product Description:

COROTURN 107 INSERT FOR TURNING

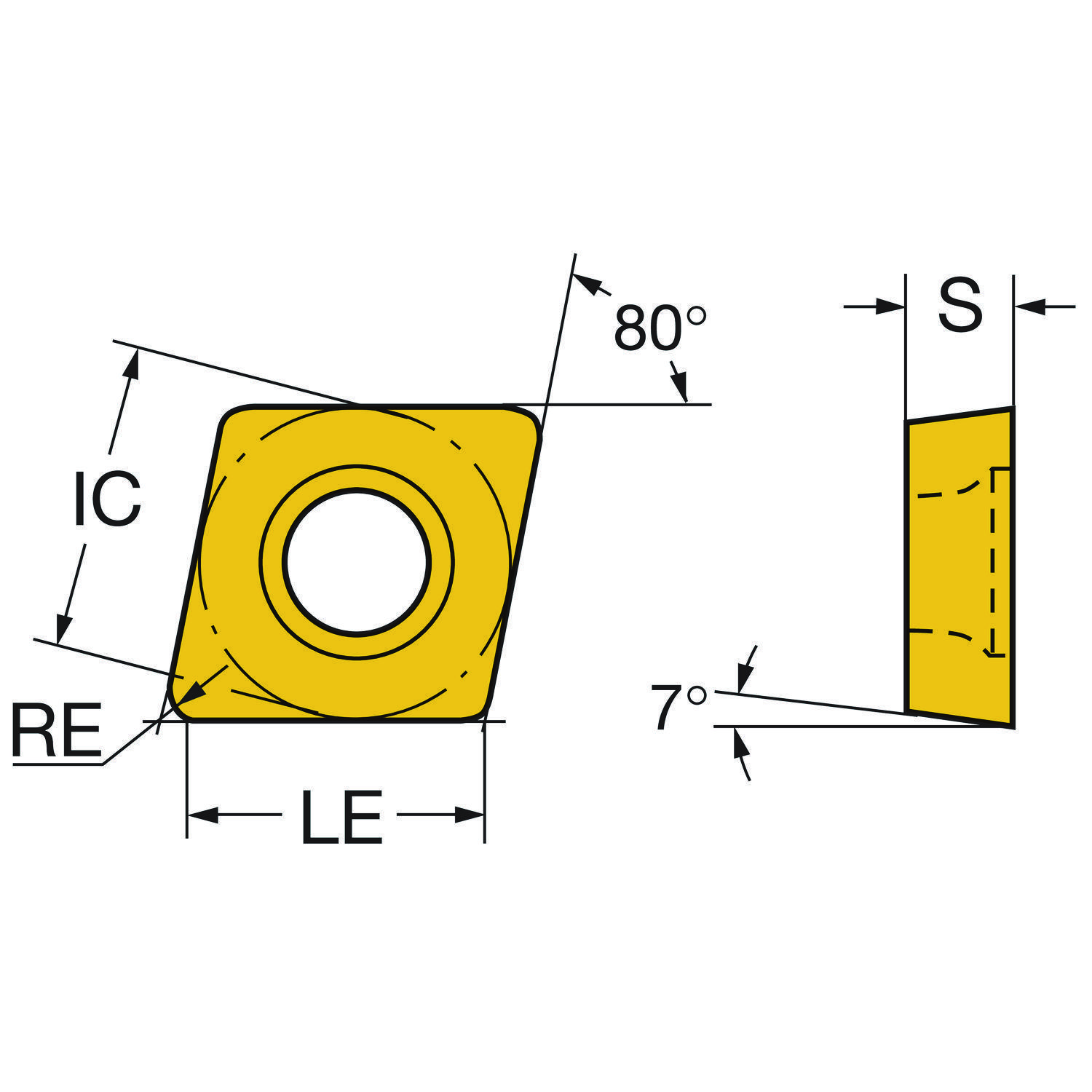

Technical Specifications

Manufacturer Name:

Sandvik Coromant

ANSI Code:

CCMT 2(1.5)1-WF 1625

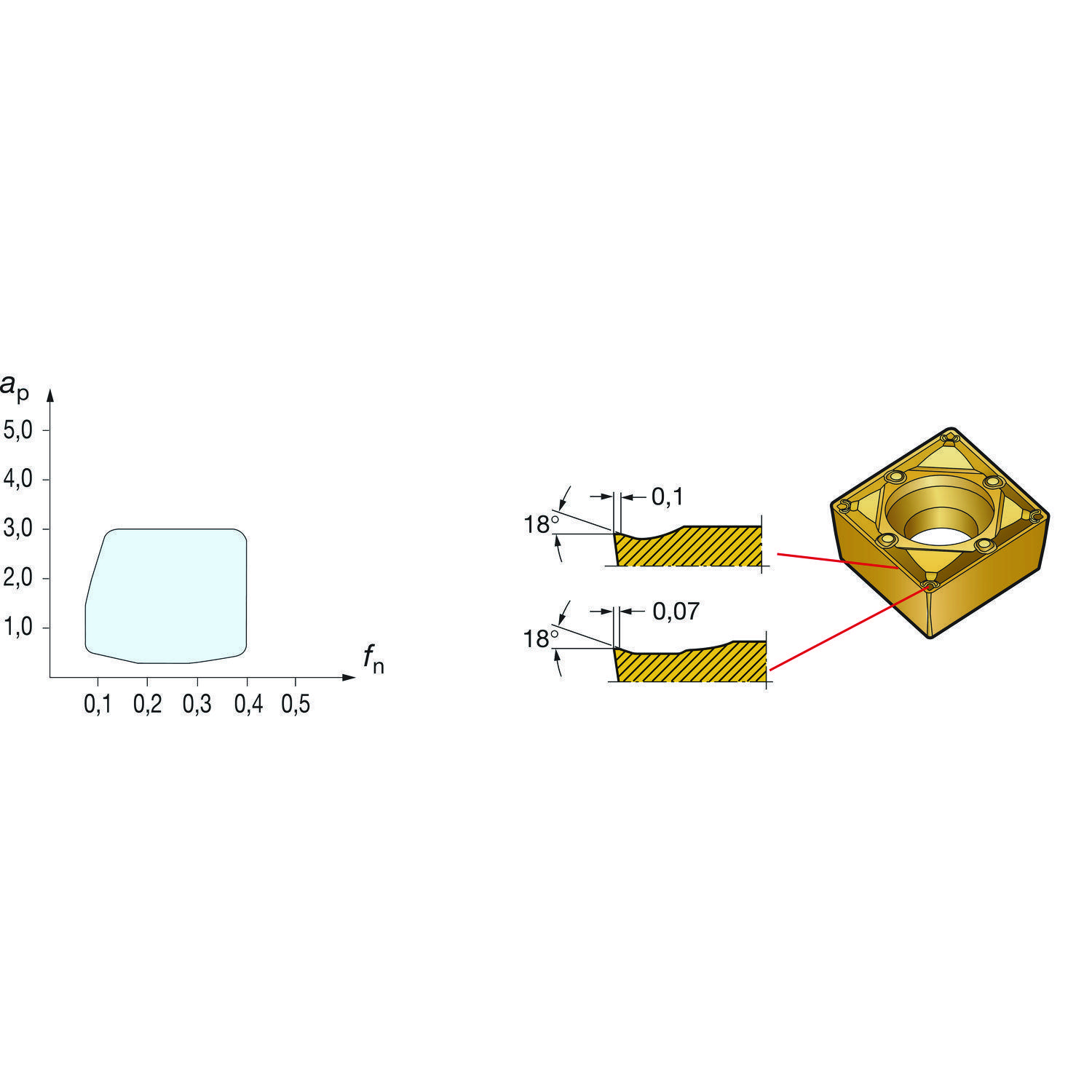

Chipbreaker:

Corner Radius:

0.016 in

Cutting Direction:

Neutral

Finish:

TiAlN/TiN

For Use On:

Steel/Stainless Steel/Cast Iron

Hole Diameter:

0.11 in

Included Angle:

95 deg

Inscribed Circle:

0.25 in

Insert Size:

0602

Insert Style:

CCMT

ISO Code:

CCMT 06 02 04-WF 1625

Length:

0.238 in

Manufacturer's Grade:

1625

Material:

Cermet

Rake:

18 deg

Relief Angle:

7 deg

Series:

CoroTurn® 107

Shape:

80 deg Rhombic

Thickness:

0.0937 in

Width:

0.003 in

: Manufacturer Name:
Sandvik Coromant
ANSI Code:
CCMT 2(1.5)1-WF 1625
Chipbreaker:
WF
Corner Radius:
0.016 in
Cutting Direction:
Neutral
Finish:
TiAlN/TiN
For Use On:
Steel/Stainless Steel/Cast Iron
Hole Diameter:
0.11 in
Included Angle:
95 deg
Inscribed Circle:
0.25 in
Insert Size:
0602
Insert Style:
CCMT
ISO Code:
CCMT 06 02 04-WF 1625
Length:
0.238 in
Manufacturer's Grade:
1625
Material:
Cermet
Rake:
18 deg
Relief Angle:
7 deg
Series:
CoroTurn® 107
Shape:
80 deg Rhombic
Thickness:
0.0937 in
Width:
0.003 in
