Sandvik Coromant
CT MIL DISC ARBOR 125MM RH 32MM R331.32C
ct mil disc arbor 125mm rh 32mm r331.32c
Stellar Part #SANCO 7295418
MFG Part #7295418
MFG Name:Sandvik Coromant
Product Description:
Sandvik Coromant 7295418 CoroMill 331 Adjustable Full Side and Face Metric Disc Milling Cutter With Internal Coolant, ANSI Code: R331.32C-125Q32LM, Arbor Connection, R331.32C Toolholder, 125 mm Dia x 17.5 to 20.5 mm W Cutting, Right Hand Cutting
Login For Price
- Technical Specifications
- Resources

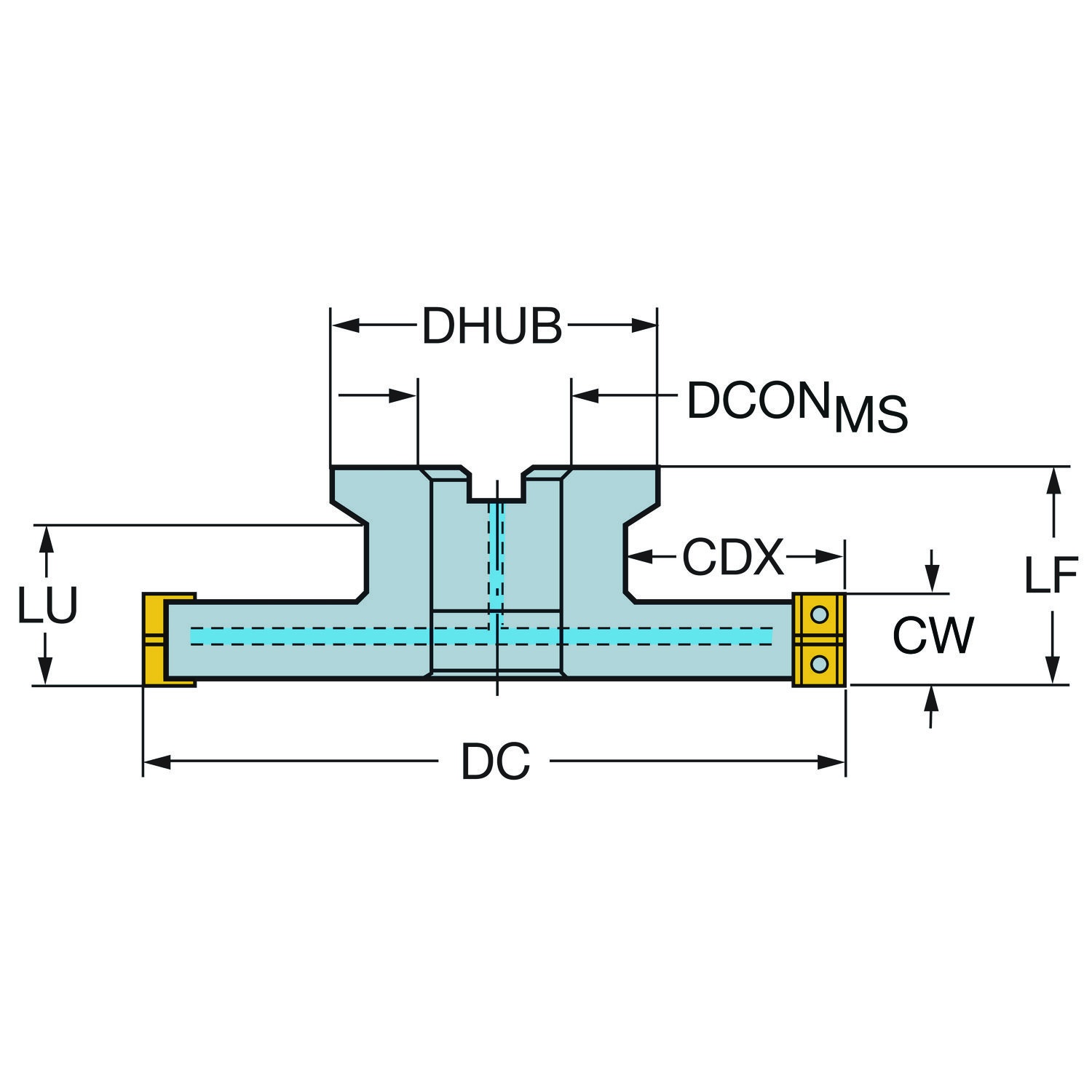

- ANSI Code:R331.32C-125Q32LMArbor Hole Diameter:32 mmConnection Type:ArborCutting Diameter:125 mmCutting Direction:Right HandCutting Width:17.5 to 20.5 mmHole Diameter:32 mmInsert Compatibility:N/R331.1A-11RE0.20-1.54Insert Gage Screw:5513 020-29ISO Code:R331.32C-125Q32LMMaximum Depth of Cut:29.5 mmModular Connection Size:32 mmNumber of Inserts:8Overall Length:50 mmRake:PositiveSeries:CoroMill® 331Toolholder Type:R331.32CType:Adjustable Full Side and Face Metric
