Sandvik Coromant

CHUCK AND HLDR TOOL HC COROMANT CAPTO

chuck and hldr tool hc coromant capto

Stellar Part #SANCO 6255480

MFG Part #6255480

MFG Name:Sandvik Coromant

Product Description:

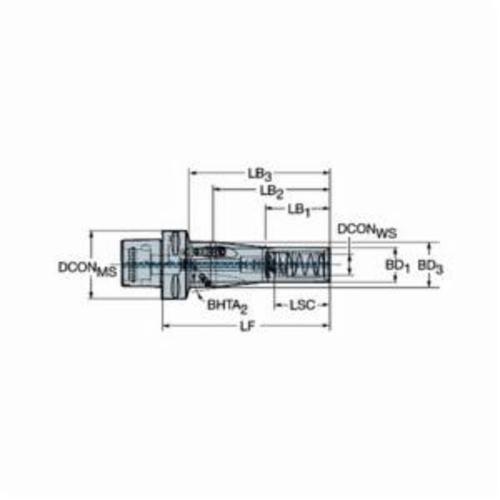

Sandvik Coromant 6255480 CoroChuck 930 High Precision Pencil Design Hydraulic Tool Holder and Chuck, PSC Taper Shank, C5 Connection, 0.787 in Dia Hole, 1.26 in Dia Nose, 5.944 in Projection

Technical Specifications

ANSI Code:

930-C5-P-20-151

Clamping Depth:

1.614 in

Connection Size:

Hole Diameter:

0.787 in

ISO Code:

930-C5-P-20-151

Nose Diameter:

1.26 in

Overall Length:

7-1/8 in

Projection:

5.944 in

Series:

CoroChuck™ 930

Shank Type:

Coromant® Capto®, PSC Taper

System Size Machine Side:

Taper Size:

1.969 in

Through Coolant (Yes/No):

Yes

Type:

High Precision Pencil Design

: ANSI Code:
930-C5-P-20-151
Clamping Depth:
1.614 in
Connection Size:
C5
Hole Diameter:
0.787 in
ISO Code:
930-C5-P-20-151
Nose Diameter:
1.26 in
Overall Length:
7-1/8 in
Projection:
5.944 in
Series:
CoroChuck™ 930
Shank Type:
Coromant® Capto®, PSC Taper
System Size Machine Side:
C5
Taper Size:
1.969 in
Through Coolant (Yes/No):
Yes
Type:
High Precision Pencil Design
