Stellar Industrial | INSRT MIL R216.2 1703 CARB 235 R R216.2

content loaded

Sandvik Coromant

INSRT MIL R216.2 1703 CARB 235 R R216.2

insrt mil r216.2 1703 carb 235 r r216.2

Stellar Part #SANCO 5742785

MFG Part #5742785

MFG Name:Sandvik Coromant

Product Description:

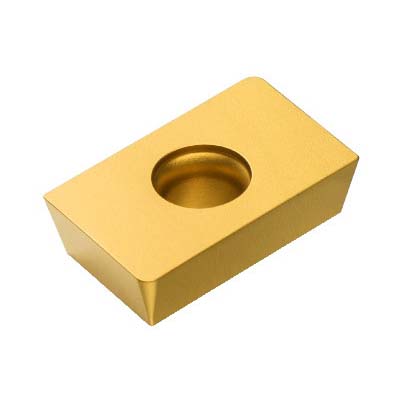

Sandvik Coromant 5742785 U-Max Milling Insert, ANSI Code: R216.2-17 03 08-1 235, R216.2 Insert, 1703 Insert, Carbide, Manufacturers Grade: 235, Rectangle Shape, Material Grade: M, P

UOM:

Technical Specifications
Resources

ANSI Code:

R216.2-17 03 08-1 235

Chipbreaker:

Flat Top

Corner Radius:

0.031 in

Country of Origin:

Finish:

CVD Coated

Hand of Insert:

Right

Hole Diameter:

0.1574 in

Inscribed Circle:

3/8 in

Insert Size:

1703

Insert Style:

R216.2

ISO Code:

R216.2-17 03 08-1 235

Lead Angle:

90 deg

Length:

0.591 in

Manufacturer Name:

Sandvik Coromant

Manufacturer's Grade:

235

Material:

Carbide

Material Application:

Stainless Steel and Steel

Material Grade:

M, P

Rake:

Positive

Series:

U-Max®

Shape:

Rectangle

Thickness:

1/8 in

Width:

3/8 in

: ANSI Code:
R216.2-17 03 08-1 235
Chipbreaker:
Flat Top
Corner Radius:
0.031 in
Country of Origin:
SE
Finish:
CVD Coated
Hand of Insert:
Right
Hole Diameter:
0.1574 in
Inscribed Circle:
3/8 in
Insert Size:
1703
Insert Style:
R216.2
ISO Code:
R216.2-17 03 08-1 235
Lead Angle:
90 deg
Length:
0.591 in
Manufacturer Name:
Sandvik Coromant
Manufacturer's Grade:
235
Material:
Carbide
Material Application:
Stainless Steel and Steel
Material Grade:
M, P
Rake:
Positive
Series:
U-Max®
Shape:
Rectangle
Thickness:
1/8 in
Width:
3/8 in
