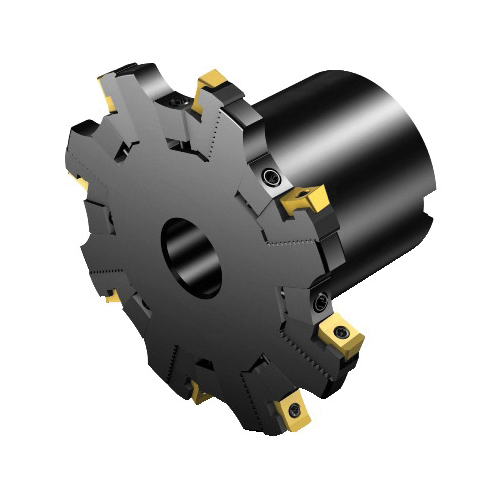

Sandvik Coromant 5745002 CoroMill® 331 Adjustable Half Side/Back Face Disc Milling Cutter, ANSI Code: R331.52-250Q60MML, 9.8425 in Dia Cutting, 2.3622 in Dia Shank, 2.4409 in OAL, R331.52..Qxx..L Insert, 2.205 in Max Depth of Cut, 2.3622 in Dia Arbor Hole
ct mil disc 9.8425in 2.3622in no r331.52
Stellar Part #SANCO 5745002
MFG Part #5745002
MFG Name:Sandvik Coromant
Product Description:
Sandvik Coromant Disc Milling Cutter, Adjustable Half Side/Back Face, Series: CoroMill® 331, 9.8425 in Cutting Dia, 2.4409 in Overall Length, 2.205 in Maximum Depth of Cut, R331.52..Qxx..L Insert, 16 Inserts, Insert Compatibility: N/R331.1A-11RE0.20-1.54, 2.3622 in Shank Dia, Arbor Shank, 2.3622 in Arbor Hole, 90 deg Lead Angle, Right Hand Cutting, 90 deg Cutting Angle, ANSI Code: R331.52-250Q60MML, ISO Code: R331.52-250Q60MML, Steel, No
Login For Price
- Technical Specifications
- ANSI Code:R331.52-250Q60MMLArbor Hole Diameter:2.3622 inCountry of Origin:SECutting Angle:90 degCutting Diameter:9.8425 inCutting Direction:Right HandInsert Compatibility:N/R331.1A-11RE0.20-1.54Insert Style:R331.52..Qxx..LISO Code:R331.52-250Q60MMLLead Angle:90 degManufacturer Name:Sandvik CoromantMaterial:SteelMaximum Depth of Cut:2.205 inNumber of Inserts:16Overall Length:2.4409 inSeries:CoroMill® 331Shank Diameter:2.3622 inShank Type:ArborThrough Coolant (Yes/No):NoType:Adjustable Half Side/Back Face
