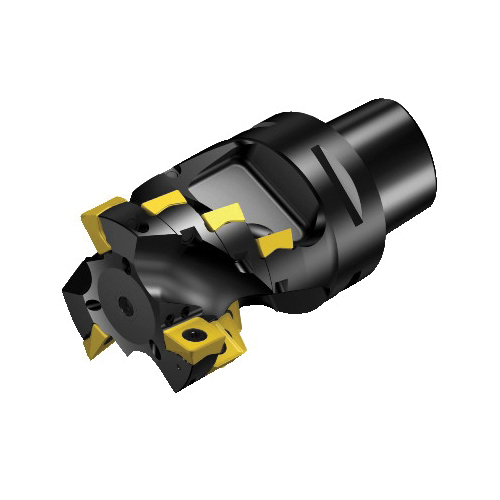

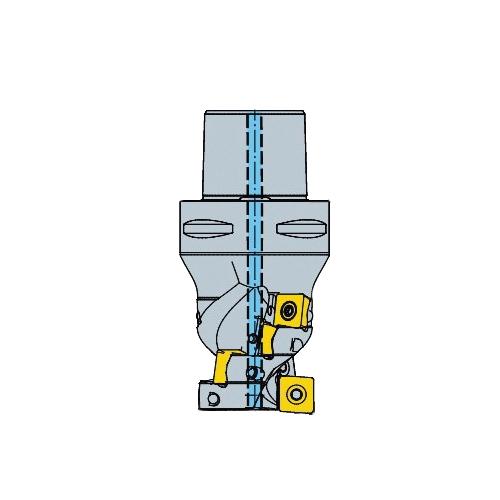

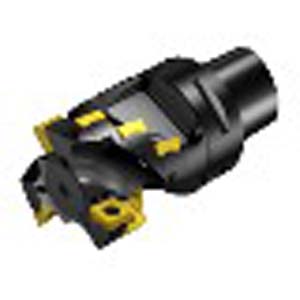

Sandvik Coromant 5764737 CoroMill® 690 Shoulder Milling Cutter, ANSI Code: 690-066C6-1053H, 2.5984 in Dia Cutting, PSC Taper Shank, 690..Cx Insert, Right Hand Cutting, 90 deg Lead Angle, 2.0866 in Max Depth of Cut
cut mil shldr 2.5984in cx rh 690-066c6
Stellar Part #SANCO 5764737
MFG Part #5764737
MFG Name:Sandvik Coromant
Product Description:
Sandvik Coromant Shoulder Milling Cutter, Series: CoroMill® 690, 2.5984 in Cutting Dia, 5.1181 in Overall Length, 2.0866 in Maximum Depth of Cut, 690..Cx Insert, Insert Compatibility: 690-100508E and 690-100510P, 2.4803 in Shank Dia, PSC Taper Shank, Right Hand Cutting, ANSI Code: 690-066C6-1053H, ISO Code: 690-066C6-1053H, 90 deg Lead Angle, Yes, Steel
Login For Price
- Technical Specifications
- Resources
- ANSI Code:690-066C6-1053HCountry of Origin:SECutting Diameter:2.5984 inCutting Direction:Right HandInsert Compatibility:690-100508E and 690-100510PInsert Style:690..CxISO Code:690-066C6-1053HLead Angle:90 degManufacturer Name:Sandvik CoromantMaterial:SteelMaximum Depth of Cut:2.0866 inOverall Length:5.1181 inSeries:CoroMill® 690Shank Diameter:2.4803 inShank Type:PSC TaperThrough Coolant (Yes/No):Yes
