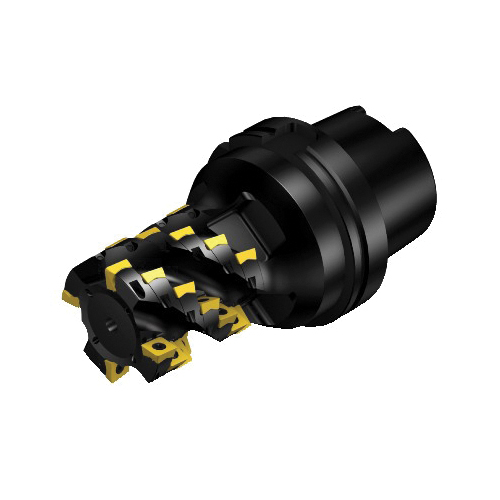

Sandvik Coromant 5774450 CoroMill® 690 Shoulder Milling Cutter, ANSI Code: 690-063HA12-10105H, 2.4803 in Dia Cutting, HSK Taper Shank, 690..HAxx Insert, Right Hand Cutting, 90 deg Lead Angle, 4.1338 in Max Depth of Cut
ct mil shldr 2.4803in hsk rh yes 690-063
Stellar Part #SANCO 5774450
MFG Part #5774450
MFG Name:Sandvik Coromant
Product Description:
Sandvik Coromant Shoulder Milling Cutter, Series: CoroMill® 690, 2.4803 in Cutting Dia, 9.5669 in Overall Length, 4.1338 in Maximum Depth of Cut, 690..HAxx Insert, Insert Compatibility: 690-100508E and 690-100510P, 4.9212 in Shank Dia, HSK Taper Shank, Right Hand Cutting, ANSI Code: 690-063HA12-10105H, ISO Code: 690-063HA12-10105H, 90 deg Lead Angle, Yes, Steel
Login For Price
- Technical Specifications
- Resources
- ANSI Code:690-063HA12-10105HCountry of Origin:USCutting Diameter:2.4803 inCutting Direction:Right HandInsert Compatibility:690-100508E and 690-100510PInsert Style:690..HAxxISO Code:690-063HA12-10105HLead Angle:90 degManufacturer Name:Sandvik CoromantMaterial:SteelMaximum Depth of Cut:4.1338 inOverall Length:9.5669 inSeries:CoroMill® 690Shank Diameter:4.9212 inShank Type:HSK TaperThrough Coolant (Yes/No):Yes
