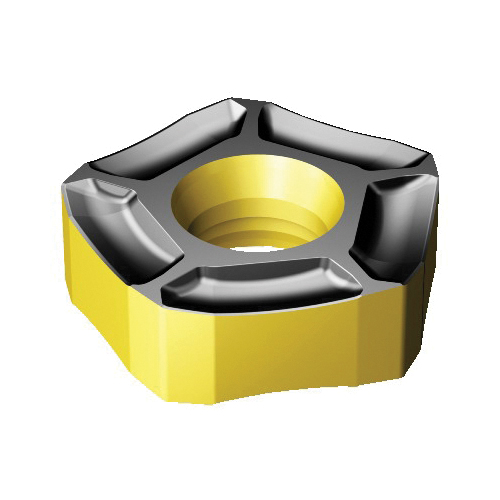

INSERT MILLING 357R..M-PM 2408 CARBIDE P

insert milling 357r..m-pm 2408 carbide p

Stellar Part #SANCO 6293216

MFG Part #6293216

MFG Name:Sandvik Coromant

Product Description:

Sandvik Coromant 6293216 CoroMill 357 Milling Insert, ANSI Code: 357R-2408M-PM 4240, 357R..M-PM Insert, 2408 Insert, Carbide, Manufacturers Grade: 4240, Pentagon Shape, Material Grade: P

UOM:

Technical Specifications
Resources

ANSI Code:

357R-2408M-PM 4240

Chipbreaker:

Corner Radius:

0.039 in

Finish:

MTCVD-TiCN+Al2O3+TiN Coated, TiCN/Al2O3/TiN

Hand of Insert:

Right

Hole Diameter:

0.394 in

Inscribed Circle:

0.961 in

Insert Size:

2408

Insert Style:

357R..M-PM

ISO Code:

357R-2408M-PM 4240

Lead Angle:

57 deg

Length:

0.698 in

Manufacturer's Grade:

4240

Material:

Carbide

Material Application:

Steel

Material Grade:

Series:

CoroMill® 357

Shape:

Pentagon

Thickness:

5/16 in

Country of Origin:

Manufacturer Name:

Sandvik Coromant

: ANSI Code:
357R-2408M-PM 4240
Chipbreaker:
PM
Corner Radius:
0.039 in
Finish:
MTCVD-TiCN+Al2O3+TiN Coated, TiCN/Al2O3/TiN
Hand of Insert:
Right
Hole Diameter:
0.394 in
Inscribed Circle:
0.961 in
Insert Size:
2408
Insert Style:
357R..M-PM
ISO Code:
357R-2408M-PM 4240
Lead Angle:
57 deg
Length:
0.698 in
Manufacturer's Grade:
4240
Material:
Carbide
Material Application:
Steel
Material Grade:
P
Series:
CoroMill® 357
Shape:
Pentagon
Thickness:
5/16 in
Country of Origin:
FR
Manufacturer Name:
Sandvik Coromant
