Sandvik Coromant

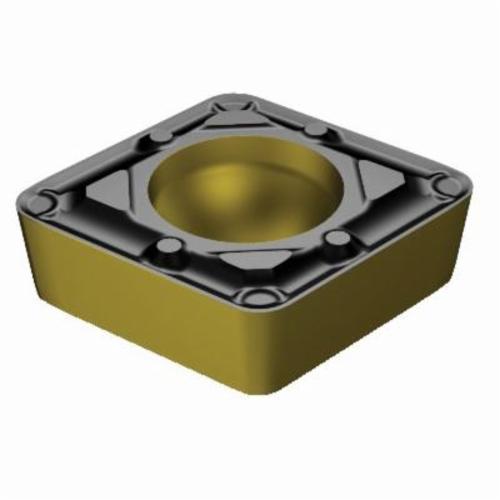

INSERT TURN CCMT K P 2(1.5)1 DMD 06 POS

insert turn ccmt k p 2(1.5)1 dmd 06 pos

Stellar Part #SANCO 6532165

MFG Part #6532165

MFG Name:Sandvik Coromant

Product Description:

Sandvik Coromant 6532165 CoroTurn 107 Turning Insert, ANSI Code: CCMT 2(1.5)1-WF 4325, CCMT Insert, Material Grade: K, P, 2(1.5)1 Insert, Diamond Shape, 06 Seat, Positive Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide

Technical Specifications
Resources

In Stock:

Yes

ANSI Code:

CCMT 2(1.5)1-WF 4325

Chipbreaker:

Corner Radius:

0.0156 in

Cutting Direction:

Neutral

Finish:

CVD-TiCN+Al2O3+TiN Coated

For Use On:

Cast Iron and Steel

Hole Diameter:

0.1102 in

Included Angle:

80 deg

Inscribed Circle:

1/4 in

Insert Size:

2(1.5)1

Insert Style:

CCMT

ISO Code:

CCMT 06 02 04-WF 4325

Manufacturer's Grade:

4325

Material:

Carbide

Material Grade:

K, P

Maximum Depth of Cut:

2 mm

Rake:

Positive

Relief Angle:

7 deg

Seat Size:

06, 6

Series:

CoroTurn® 107

Shape:

Diamond

Thickness:

0.0937 in

: In Stock:
Yes
ANSI Code:
CCMT 2(1.5)1-WF 4325
Chipbreaker:
WF
Corner Radius:
0.0156 in
Cutting Direction:
Neutral
Finish:
CVD-TiCN+Al2O3+TiN Coated
For Use On:
Cast Iron and Steel
Hole Diameter:
0.1102 in
Included Angle:
80 deg
Inscribed Circle:
1/4 in
Insert Size:
2(1.5)1
Insert Style:
CCMT
ISO Code:
CCMT 06 02 04-WF 4325
Manufacturer's Grade:
4325
Material:
Carbide
Material Grade:
K, P
Maximum Depth of Cut:
2 mm
Rake:
Positive
Relief Angle:
7 deg
Seat Size:
06, 6
Series:
CoroTurn® 107
Shape:
Diamond
Thickness:
0.0937 in
