Sandvik Coromant

INS TRN K P 331 DMD 16 NEG 4MM VNMG 331

ins trn k p 331 dmd 16 neg 4mm vnmg 331

Stellar Part #SANCO 6532390

MFG Part #6532390

MFG Name:Sandvik Coromant

Product Description:

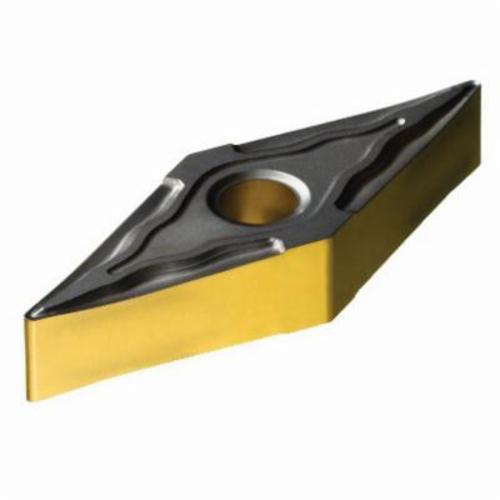

Sandvik Coromant 6532390 T-Max P 2-Sided Basic Shape Turning Insert, ANSI Code: VNMG 331-MF 4325, VNMG Insert, Material Grade: K, P, 331 Insert, Diamond Shape, 16 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide

Technical Specifications
Resources

ANSI Code:

VNMG 331-MF 4325

Chipbreaker:

Corner Radius:

0.016 in

Country of Origin:

Cutting Direction:

Neutral

Finish:

CVD-TiCN+Al2O3+TiN Coated, TiCN/Al2O3/TiN

For Use On:

Cast Iron and Steel

Hole Diameter:

0.15 in

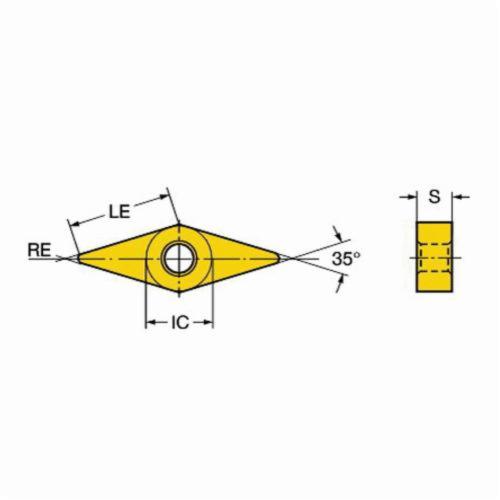

Included Angle:

35 deg

Inscribed Circle:

3/8 in

Insert Size:

331

Insert Style:

VNMG

ISO Code:

VNMG 16 04 04-MF 4325

Length:

0.6537 in

Manufacturer Name:

Sandvik Coromant

Manufacturer's Grade:

4325

Material:

Carbide

Material Grade:

K, P

Maximum Depth of Cut:

4 mm

Rake:

Negative

Relief Angle:

0 deg

Seat Size:

Series:

T-Max® P

Shape:

Diamond

Thickness:

0.187 in

Type:

2-Sided Basic Shape

: ANSI Code:
VNMG 331-MF 4325
Chipbreaker:
MF
Corner Radius:
0.016 in
Country of Origin:
SE
Cutting Direction:
Neutral
Finish:
CVD-TiCN+Al2O3+TiN Coated, TiCN/Al2O3/TiN
For Use On:
Cast Iron and Steel
Hole Diameter:
0.15 in
Included Angle:
35 deg
Inscribed Circle:
3/8 in
Insert Size:
331
Insert Style:
VNMG
ISO Code:
VNMG 16 04 04-MF 4325
Length:
0.6537 in
Manufacturer Name:
Sandvik Coromant
Manufacturer's Grade:
4325
Material:
Carbide
Material Grade:
K, P
Maximum Depth of Cut:
4 mm
Rake:
Negative
Relief Angle:
0 deg
Seat Size:
16
Series:
T-Max® P
Shape:
Diamond
Thickness:
0.187 in
Type:
2-Sided Basic Shape
