Sandvik Coromant

INSERT TURN CNMG K P 643 RHOMB 19 NEG

insert turn cnmg k p 643 rhomb 19 neg

Stellar Part #SANCO 6707395

MFG Part #6707395

MFG Name:Sandvik Coromant

Product Description:

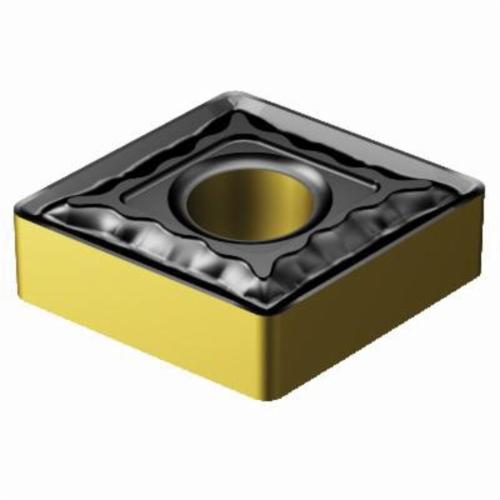

Sandvik Coromant 6707395 T-Max P Turning Insert, ANSI Code: CNMG 643-QM 4305, CNMG Insert, Material Grade: K, P, 643 Insert, Rhombic Shape, 19 Seat, Negative Rake, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4305

UOM:

Technical Specifications
Resources

ANSI Code:

CNMG 643-QM 4305

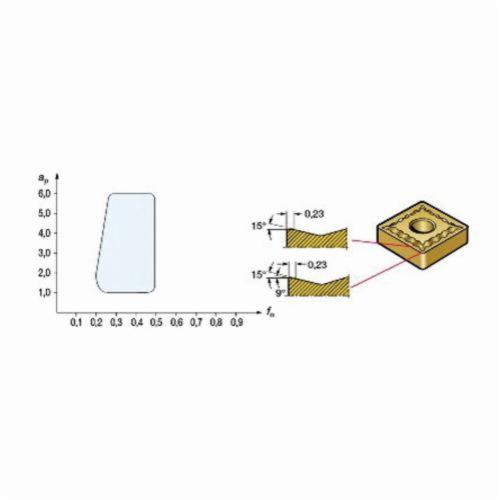

Chipbreaker:

Corner Radius:

0.047 in

Cutting Direction:

Neutral

Finish:

CVD-TiCN+Al2O3+TiN Coated

For Use On:

Cast Iron and Steel

Hole Diameter:

0.312 in

Included Angle:

80 deg

Inscribed Circle:

3/4 in

Insert Size:

643

Insert Style:

CNMG

ISO Code:

CNMG 19 06 12-QM 4305

Manufacturer's Grade:

4305

Material:

Carbide

Material Grade:

K, P

Maximum Depth of Cut:

0.315 in

Rake:

Negative

Relief Angle:

0 deg

Seat Size:

Series:

T-Max® P

Shape:

Rhombic

Thickness:

1/4 in

: ANSI Code:
CNMG 643-QM 4305
Chipbreaker:
QM
Corner Radius:
0.047 in
Cutting Direction:
Neutral
Finish:
CVD-TiCN+Al2O3+TiN Coated
For Use On:
Cast Iron and Steel
Hole Diameter:
0.312 in
Included Angle:
80 deg
Inscribed Circle:
3/4 in
Insert Size:
643
Insert Style:
CNMG
ISO Code:
CNMG 19 06 12-QM 4305
Manufacturer's Grade:
4305
Material:
Carbide
Material Grade:
K, P
Maximum Depth of Cut:
0.315 in
Rake:
Negative
Relief Angle:
0 deg
Seat Size:
19
Series:
T-Max® P
Shape:
Rhombic
Thickness:
1/4 in
