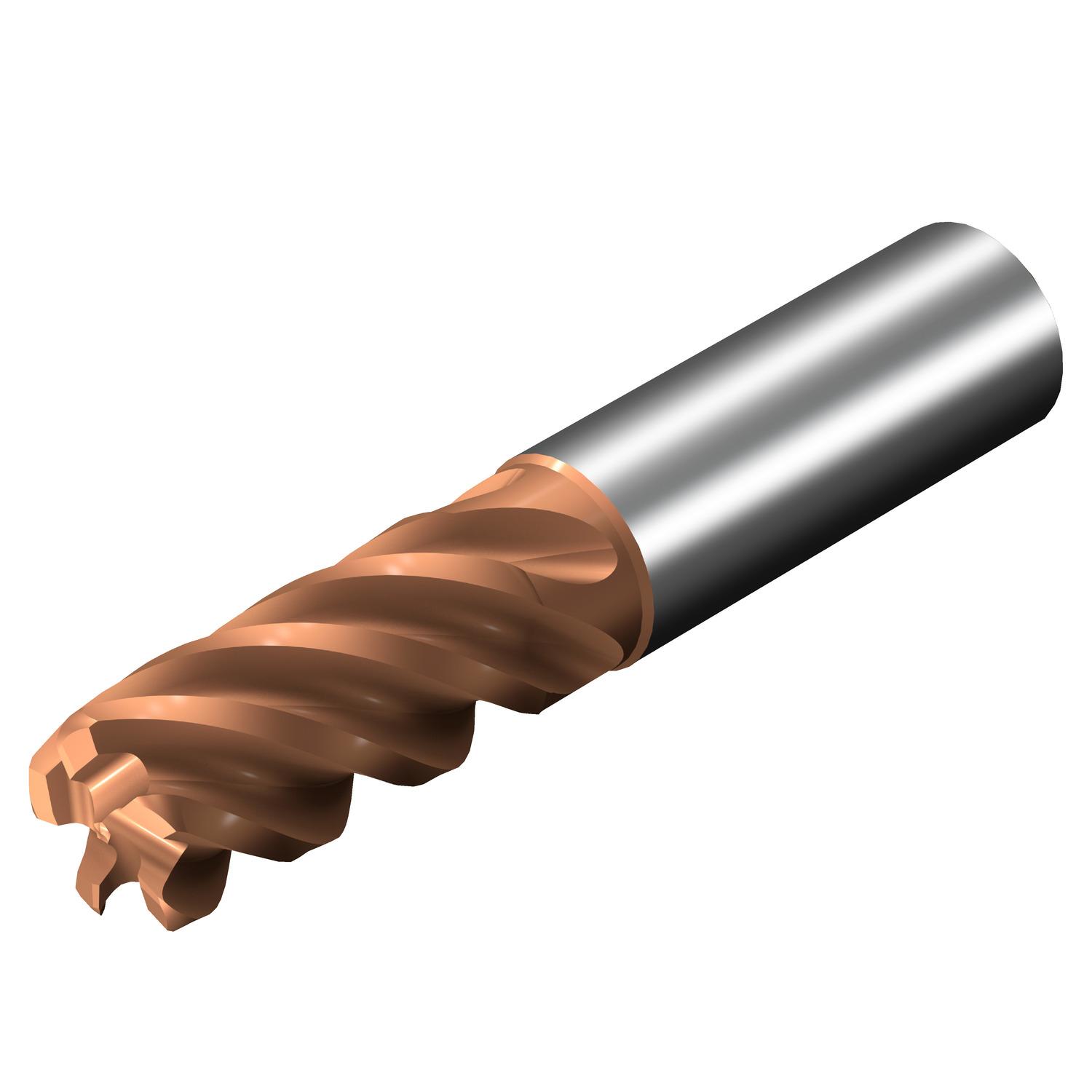

Sandvik Coromant 7419248 CoroMill® Plura Square Shoulder End Mill, 4 mm Dia Cutter, 0.5 mm Corner Radius, 9 mm Length of Cut, 4 Flutes, 6 mm Dia Shank, 57 mm OAL, TiAlN/TiSiN
mill end 4mm 0.5mm 9mm 4 6mm 57mm spl rh
Stellar Part #SANCO 7419248
MFG Part #7419248
MFG Name:Sandvik Coromant
Product Description:
Sandvik Coromant End Mill, Square Shoulder, Series: CoroMill® Plura, 4 mm Cutter Dia, 0.5 mm Corner Radius, 57 mm Overall Length, 9 mm Length of Cut, 4 Flutes, Spiral Flute, 6 mm Shank Dia, Right Hand Cutting, 42 deg Helix Angle, Cylindrical Shank, ANSI Code: 2F341-0400-050-SC 1710, ISO Code: 2F341-0400-050-SC 1710, Solid Carbide, TiAlN/TiSiN
Login For Price
- Technical Specifications
- Resources

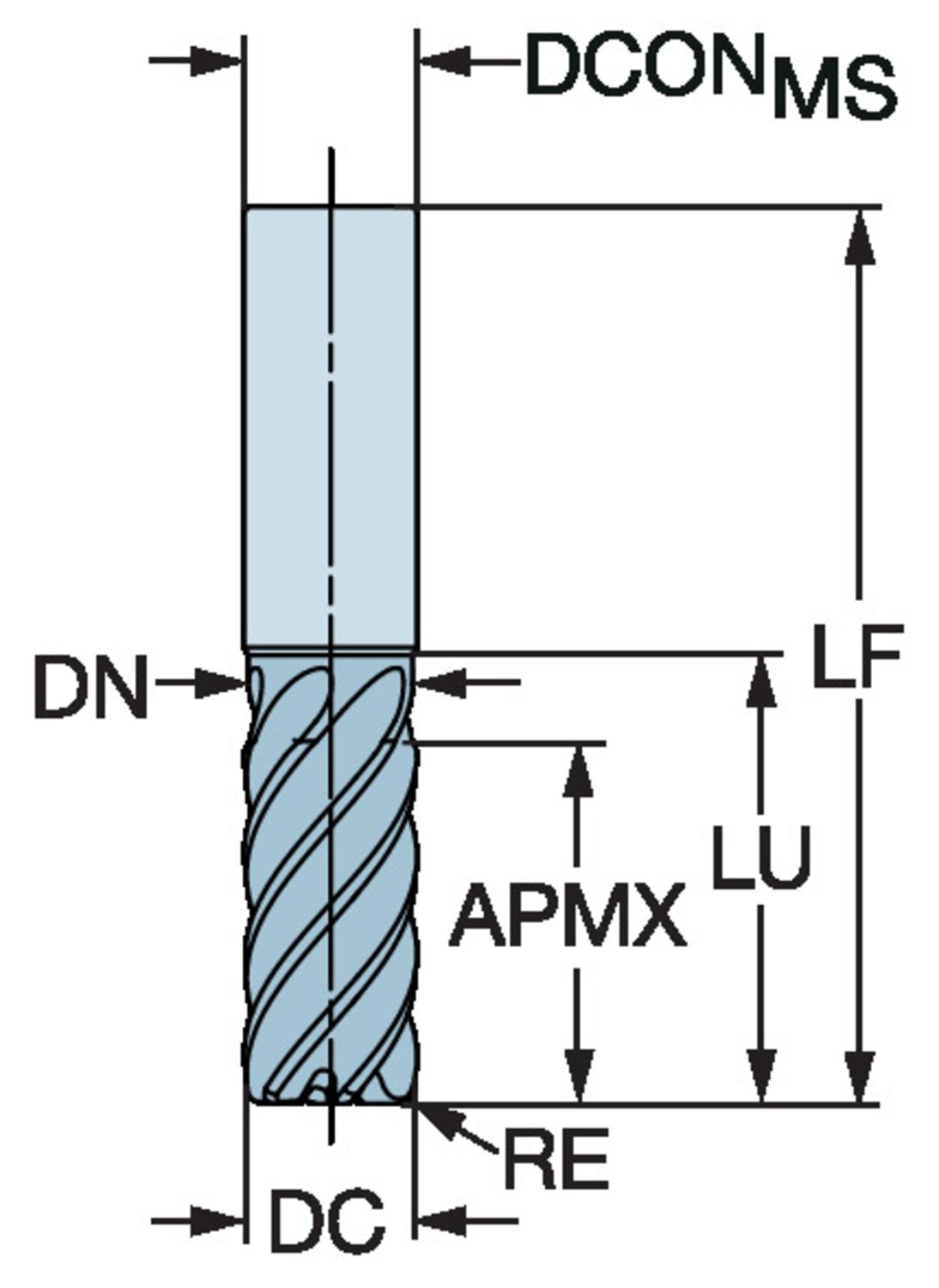

- ANSI Code:2F341-0400-050-SC 1710Corner Radius:0.5 mmCountry of Origin:ITCutter Diameter:4 mmCutting Direction:Right HandFinish:TiAlN/TiSiNFlute Type:SpiralHelix Angle:42 degISO Code:2F341-0400-050-SC 1710Length of Cut:9 mmManufacturer Name:Sandvik CoromantMaterial:Solid CarbideNumber of Flutes:4Overall Length:57 mmSeries:CoroMill® PluraShank Diameter:6 mmShank Type:CylindricalType:Square Shoulder
