Stellar Part #SANCO 7861057
MFG Part #7861057
MFG Name:Sandvik Coromant
Product Description:

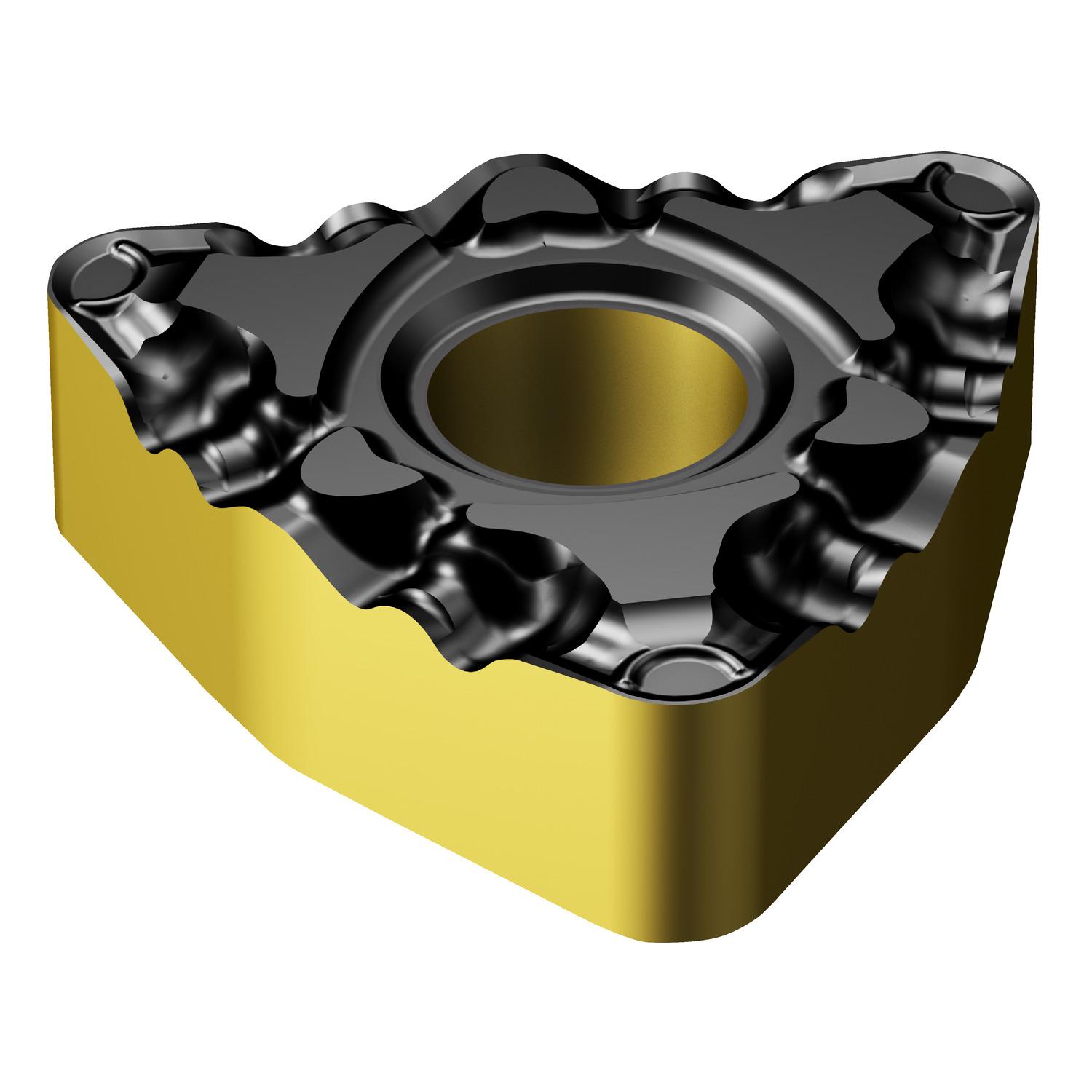

Sandvik Coromant 7861057 T-Max P 6-Cutting Edge Turning Insert, ANSI Code: WNMG 331-PF 4425, WNMG Insert, Material Grade: P, K, 0604 Insert, Trigon Shape, Neutral Cutting, For Use On Steel and Cast Iron, Carbide, Manufacturers Grade: 4425
Login For Price
- Technical Specifications

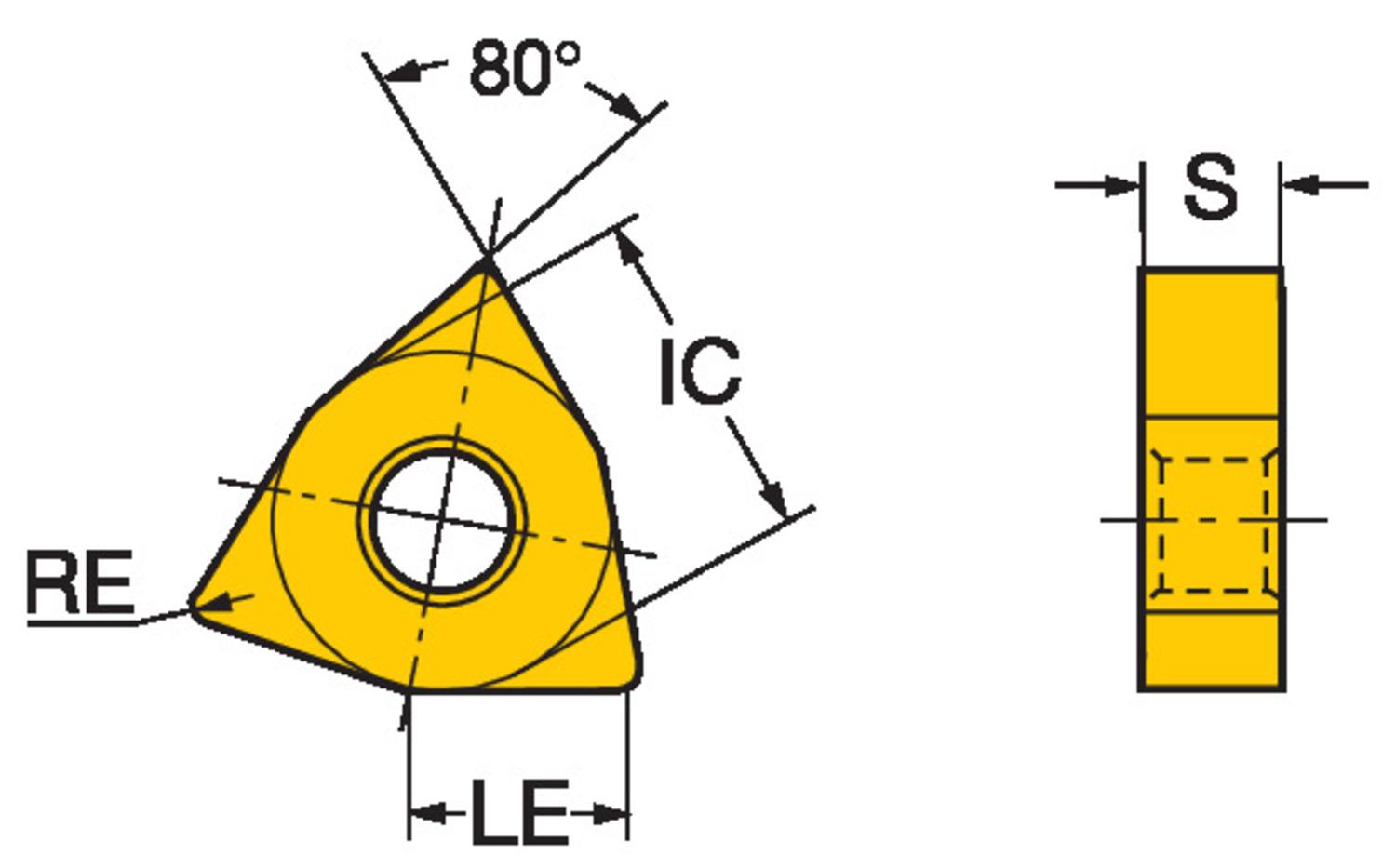

- ANSI Code:WNMG 331-PF 4425Chipbreaker:PFCorner Radius:0.0156 inCutting Direction:NeutralFinish:CVD-TiCN+Al2O3+TiN Coated, TiCN/Al2O3/TiNFor Use On:Steel and Cast IronIncluded Angle:80 degInscribed Circle:3/8 inInsert Size:0604Insert Style:WNMGISO Code:WNMG 06 04 04-PF 4425Manufacturer's Grade:4425Material:CarbideMaterial Grade:P, KRelief Angle:0 degSeries:T-Max® PShape:TrigonThickness:3/16 inType:6-Cutting EdgeCountry of Origin:USManufacturer Name:Sandvik Coromant
