Sandvik Coromant

INSERT TURN TPMT K P 222 TRNGL NEUT PM

insert turn tpmt k p 222 trngl neut pm

Stellar Part #SANCO 8019509

MFG Part #8019509

MFG Name:Sandvik Coromant

Product Description:

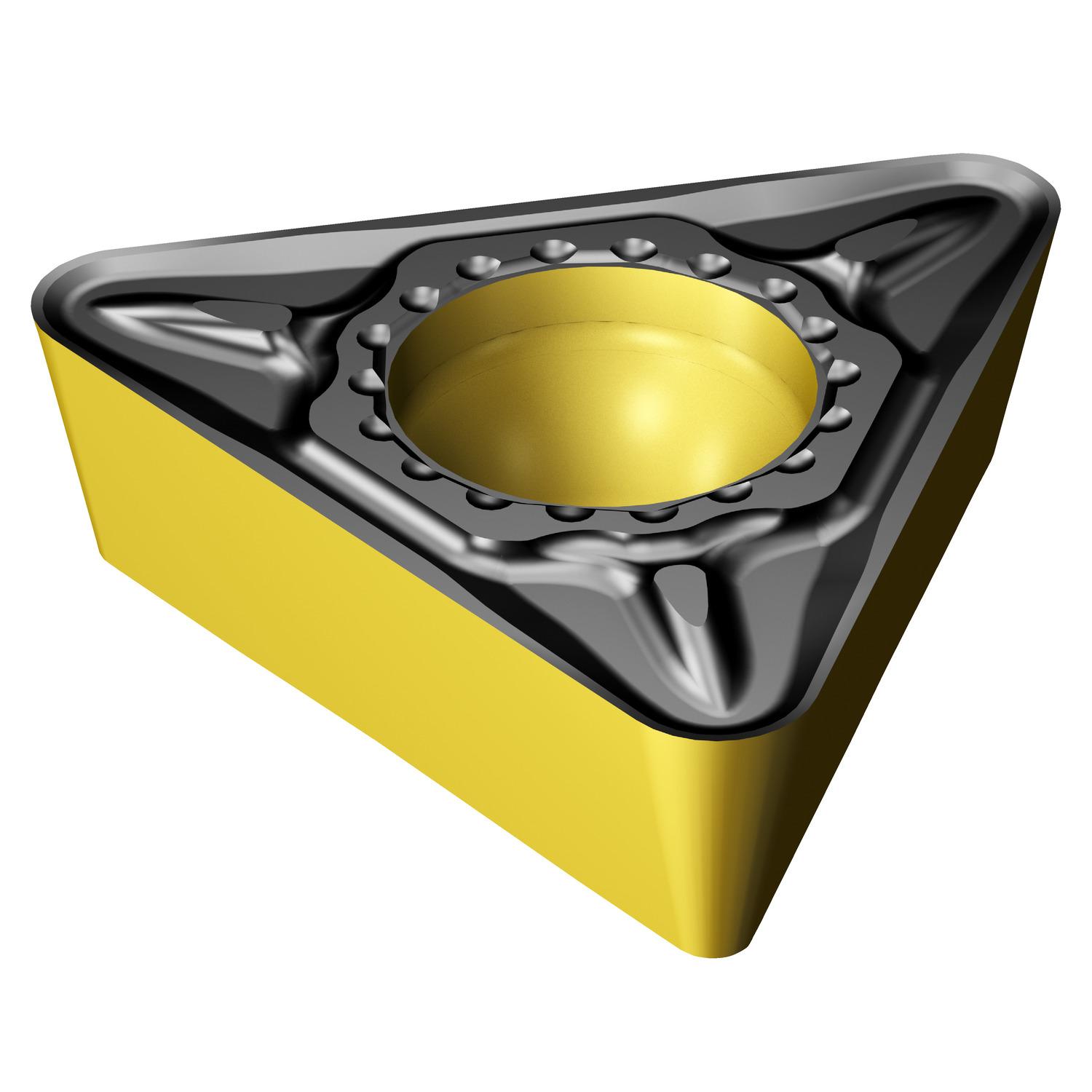

Sandvik Coromant 8019509 CoroTurn 111 3-Cutting Edge Turning Insert, ANSI Code: TPMT 222-PM 4425, TPMT Insert, Material Grade: K, P, 222 Insert, Triangle Shape, Neutral Cutting, For Use On Cast Iron and Steel, Carbide, Manufacturers Grade: 4425

UOM:

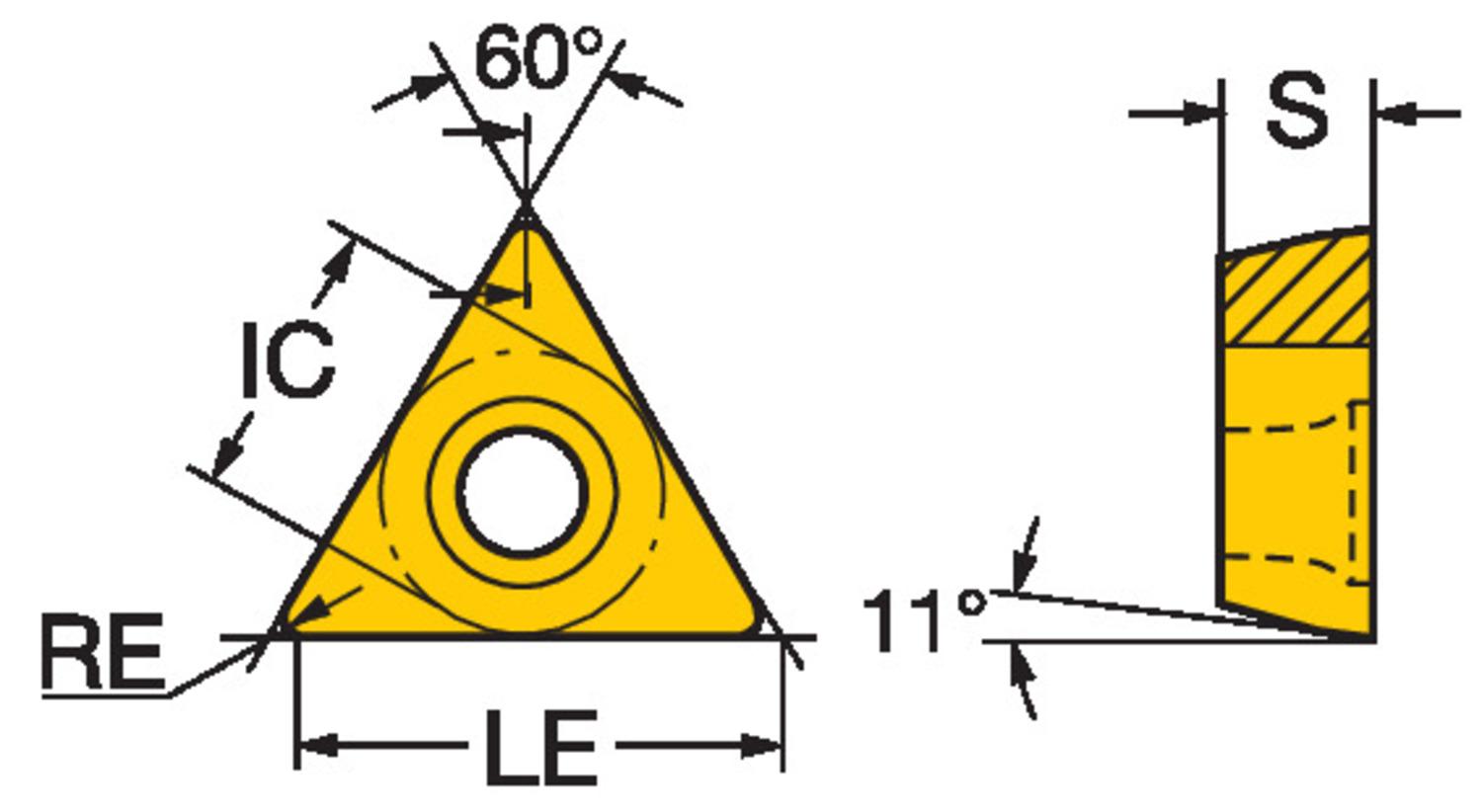

Technical Specifications

ANSI Code:

TPMT 222-PM 4425

Chipbreaker:

Corner Radius:

0.0312 in

Cutting Direction:

Neutral

Finish:

CVD-TiCN+Al2O3+TiN Coated

For Use On:

Cast Iron and Steel

Included Angle:

60 deg

Inscribed Circle:

1/4 in

Insert Size:

222

Insert Style:

TPMT

ISO Code:

TPMT 11 03 08-PM 4425

Length:

0.4015 in

Manufacturer's Grade:

4425

Material:

Carbide

Material Grade:

K, P

Relief Angle:

11 deg

Series:

CoroTurn® 111

Shape:

Triangle

Thickness:

1/8 in

Type:

3-Cutting Edge

: ANSI Code:
TPMT 222-PM 4425
Chipbreaker:
PM
Corner Radius:
0.0312 in
Cutting Direction:
Neutral
Finish:
CVD-TiCN+Al2O3+TiN Coated
For Use On:
Cast Iron and Steel
Included Angle:
60 deg
Inscribed Circle:
1/4 in
Insert Size:
222
Insert Style:
TPMT
ISO Code:
TPMT 11 03 08-PM 4425
Length:
0.4015 in
Manufacturer's Grade:
4425
Material:
Carbide
Material Grade:
K, P
Relief Angle:
11 deg
Series:
CoroTurn® 111
Shape:
Triangle
Thickness:
1/8 in
Type:
3-Cutting Edge
