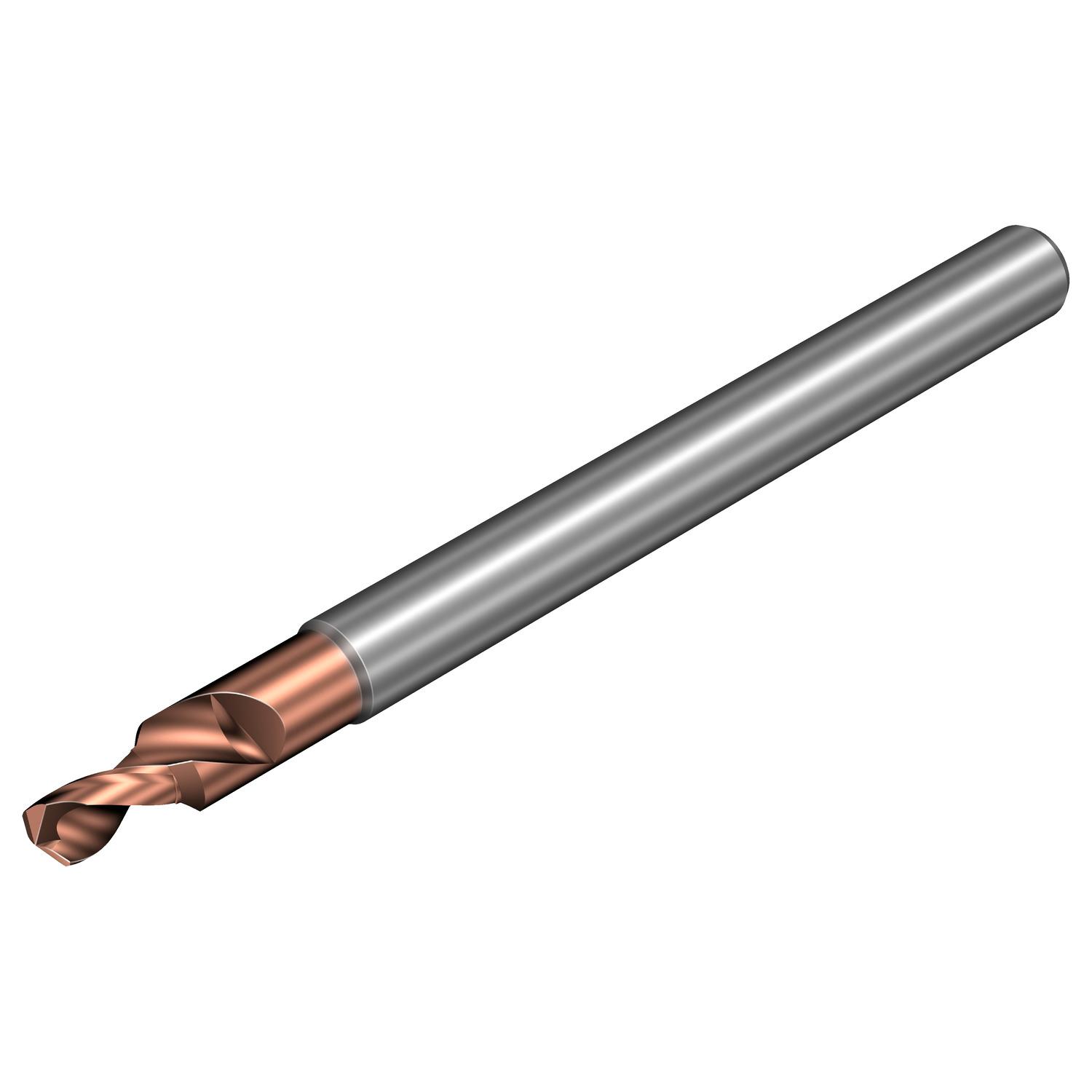

Sandvik Coromant 8173408 CoroDrill® 862-GM High Performance Step/Chamfer Micro Drill, 0.9 mm Drill - Metric, 0.035433 in Drill - Decimal Inch, Solid Carbide
drill micro step/chamfer 0.9mm imprl cyl
Stellar Part #SANCO 8173408
MFG Part #8173408
MFG Name:Sandvik Coromant
Product Description:
Sandvik Coromant Step/Chamfer Micro Drill, High Performance, Series: CoroDrill® 862-GM, Imperial, 0.9 mm Drill - Metric, 0.035433 in Drill - Decimal Inch, 1.9685 in Overall Length, 0.070866 in Cutting Depth, 0.23622 in Flute Length, 0.15748 in Shank, Cylindrical Shank, 140 deg Point, HW Cutting Edge, Solid Carbide, Applicable Materials: Cast Iron/Hardened Steel/Heat-Resistant Super Alloys/Non-Ferrous Materials/Stainless Steel/Steel
Login For Price
- Technical Specifications
- Resources
- Applicable Materials:Cast Iron/Hardened Steel/Heat-Resistant Super Alloys/Non-Ferrous Materials/Stainless Steel/SteelCountry of Origin:CHCutting Depth:0.070866 inCutting Edge Material:HWDrill Diameter Measurement System:ImperialDrill Size - Decimal Inch:0.035433 inDrill Size - Metric:0.9 mmFlute Length:0.23622 inManufacturer Name:Sandvik CoromantMaterial:Solid CarbideOverall Length:1.9685 inPoint Angle:140 degSeries:CoroDrill® 862-GMShank Size:0.15748 inShank Type:CylindricalType:High Performance
