Stellar Part #SIMPS WA505124SS
MFG Part #WA505124SS
MFG Name:Simpson Strong-Tie
Product Description:

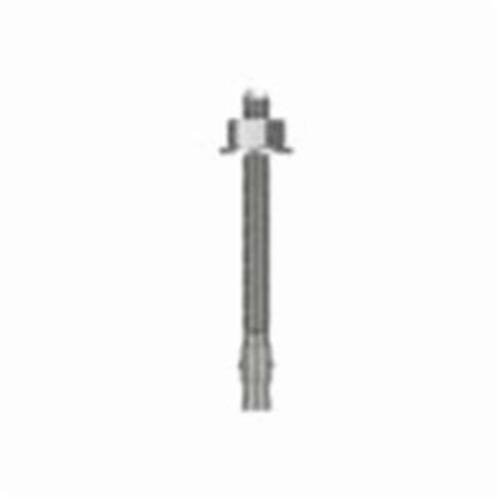

Simpson Strong-Tie WA505124SS Wedge-All Wedge Anchor, 1/2 in Dia, 5-1/2 in OAL, 4-1/16 in L Thread, 303/304 Stainless Steel
Login For Price
- Item Features
- Technical Specifications
- Resources
- Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
- 740 lb at 2000 psi and 1190 lb at 4000 psi allowable tension load
- One-piece, wrap-around clip ensures uniform holding capacity
- Threaded end is chamfered for ease of starting nut
- 18-8 stainless steel nut/washer/clip
- The minimum concrete thickness is 1-1/2 times the embedment depth
- The allowable loads are based on a safety factor of 4
- 9/16 in minimum fixture hole
- 60 ft-lb installation torque
- 6560 ultimate and 1345 lb allowable shear strength
