Stellar Part #SIMPS WA37334
MFG Part #WA37334
MFG Name:Simpson Strong-Tie
Product Description:

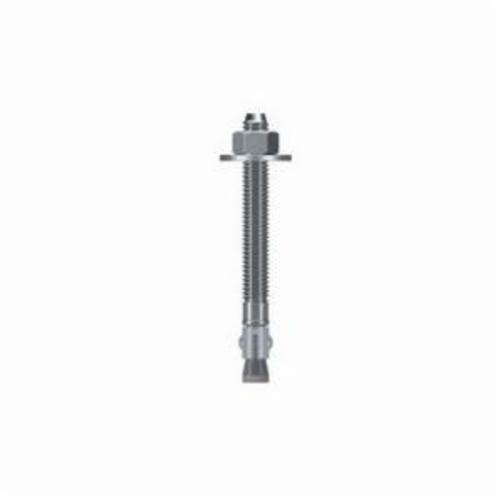

Simpson Strong-Tie WA37334 Wedge-All Wedge Anchor, 3/8 in Dia, 3-3/4 in OAL, 2-5/8 in L Thread, Carbon Steel, Zinc Plated
Login For Price
- Item Features
- Technical Specifications
- Resources
- Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
- 1560 lb at 2000 psi/2880 lb at 4000 psi ultimate tension loads and 390 lb at 2000 psi, 555 lb at 3000 psi, 720 at 4000 psi allowable tension load for concrete
- 2280 lb at 2000 psi ultimate shear loads and 570 lb at 2000/3000/4000 psi allowable shear load for concrete
- Anchor body material meets minimum 70000 psi tensile strength
- One-piece, wrap-around clip ensures uniform holding capacity
- Threaded end is chamfered for ease of starting nut
- Available in a wide range of diameters and lengths
- Carbon steel ASTM A563 grade A nut
- The minimum concrete thickness is 1-1/2 times the embedment depth
- The allowable loads are based on a safety factor of 4
- 7/16 in minimum fixture hole
- 30 ft-lb installation torque
- Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
- 1560 lb at 2000 psi/2880 lb at 4000 psi ultimate tension loads and 390 lb at 2000 psi, 555 lb at 3000 psi, 720 at 4000 psi allowable tension load for concrete
- 2280 lb at 2000 psi ultimate shear loads and 570 lb at 2000/3000/4000 psi allowable shear load for concrete
- Anchor body material meets minimum 70000 psi tensile strength
- One-piece, wrap-around clip ensures uniform holding capacity
- Threaded end is chamfered for ease of starting nut
- Available in a wide range of diameters and lengths
- Carbon steel ASTM A563 grade A nut
- The minimum concrete thickness is 1-1/2 times the embedment depth
- The allowable loads are based on a safety factor of 4
- 7/16 in minimum fixture hole
- 30 ft-lb installation torque
- In Stock:YesDiameter:3/8 inDrill Size:3/8 inFinish:Zinc PlatedHead Size:9/16 inMaterial:Carbon SteelMinimum Embedment Depth:1-3/4 inOverall Length:3-3/4 inSeries:Wedge-All, Wedge-All®Shear Strength:570 lbTensile Strength:261 lbThread Length:2-5/8 in
