Simpson Strong-Tie
ANCHOR WG 3/8IN 5IN 3-7/8IN 303/304 SST
anchor wg 3/8in 5in 3-7/8in 303/304 sst
Stellar Part #SIMPS WA375004SS
MFG Part #WA375004SS
MFG Name:Simpson Strong-Tie
Product Description:

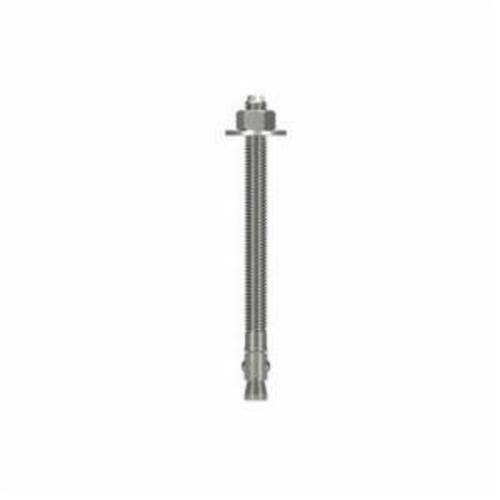

Simpson Strong-Tie WA375004SS Wedge-All Wedge Anchor, 3/8 in Dia, 5 in OAL, 3-7/8 in L Thread, 303/304 Stainless Steel
Login For Price
- Item Features
- Technical Specifications
- Resources
- Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
- 350 lb at 2000 psi anf 600 lb at 4000 psi allowable tension load
- One-piece, wrap-around clip ensures uniform holding capacity
- Threaded end is chamfered for ease of starting nut
- 18-8 stainless steel nut/washer/clip
- The minimum concrete thickness is 1-1/2 times the embedment depth
- The allowable loads are based on a safety factor of 4
- 7/16 in minimum fixture hole
- 30 ft-lb installation torque
- 2280 lb ultimate and 570 lb allowable shear strength
- Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
- 350 lb at 2000 psi anf 600 lb at 4000 psi allowable tension load
- One-piece, wrap-around clip ensures uniform holding capacity
- Threaded end is chamfered for ease of starting nut
- 18-8 stainless steel nut/washer/clip
- The minimum concrete thickness is 1-1/2 times the embedment depth
- The allowable loads are based on a safety factor of 4
- 7/16 in minimum fixture hole
- 30 ft-lb installation torque
- 2280 lb ultimate and 570 lb allowable shear strength
- Diameter:3/8 inDrill Size:3/8 inHead Size:9/16 inMaterial:303/304 Stainless SteelMinimum Embedment Depth:1-3/4 inOverall Length:5 inSeries:Wedge-All, Wedge-All®Shear Strength:96 lbTensile Strength:500 lbThread Length:3-7/8 in
