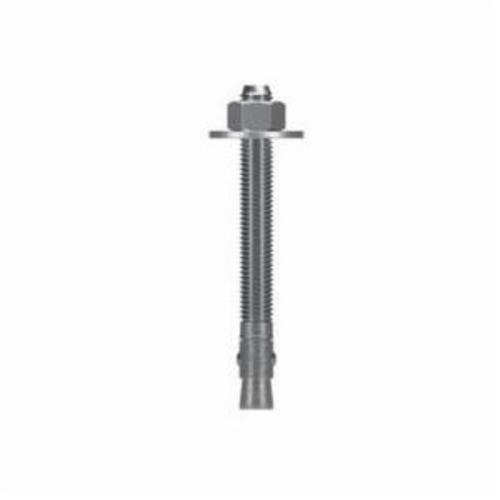

ANCHOR WG 5/8IN 6IN 4-3/8IN CS 2-3/4IN
anchor wg 5/8in 6in 4-3/8in cs 2-3/4in
Stellar Part #SIMPS WA62600MG
MFG Part #WA62600MG
MFG Name:Simpson Strong-Tie
Product Description:
Simpson Strong-Tie WA62600MG Wedge-All Wedge Anchor, 5/8 in Dia, 6 in OAL, 4-3/8 in L Thread, Carbon Steel, Mechanically Galvanized
Login For Price
- Item Features
- Technical Specifications
- Resources
- Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
- 4520 lb at 2000 psi/8600 lb at 4000 psi ultimate tension loads and 1130 lb at 2000 psi, 1640 lb at 3000 psi, 2150 lb at 4000 psi for concrete
- 8720 lb at 2000 psi ultimate shear loads and 1620 lb at 2000 psi, 1900 lb at 3000 psi, 2180 lb at 4000 psi for concrete
- Anchor body material meets minimum 70000 psi tensile strength
- One-piece, wrap-around clip ensures uniform holding capacity
- Threaded end is chamfered for ease of starting nut
- Available in a wide range of diameters and lengths
- Carbon steel ASTM A563 grade A nut
- The minimum concrete thickness is 1-1/2 times the embedment depth
- The allowable loads are based on a safety factor of 4
- 11/16 in minimum fixture hole
- 90 ft-lb installation torque
- Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
- 4520 lb at 2000 psi/8600 lb at 4000 psi ultimate tension loads and 1130 lb at 2000 psi, 1640 lb at 3000 psi, 2150 lb at 4000 psi for concrete
- 8720 lb at 2000 psi ultimate shear loads and 1620 lb at 2000 psi, 1900 lb at 3000 psi, 2180 lb at 4000 psi for concrete
- Anchor body material meets minimum 70000 psi tensile strength
- One-piece, wrap-around clip ensures uniform holding capacity
- Threaded end is chamfered for ease of starting nut
- Available in a wide range of diameters and lengths
- Carbon steel ASTM A563 grade A nut
- The minimum concrete thickness is 1-1/2 times the embedment depth
- The allowable loads are based on a safety factor of 4
- 11/16 in minimum fixture hole
- 90 ft-lb installation torque
- Diameter:5/8 inDrill Size:5/8 inFinish:Mechanically GalvanizedHead Size:15/16 inMaterial:Carbon SteelMinimum Embedment Depth:2-3/4 inOverall Length:6 inSeries:Wedge-All, Wedge-All®Shear Strength:1699 lbTensile Strength:120 lbThread Length:4-3/8 in
