Stellar Part #SIMPS WA756146SS
MFG Part #WA756146SS
MFG Name:Simpson Strong-Tie
Product Description:

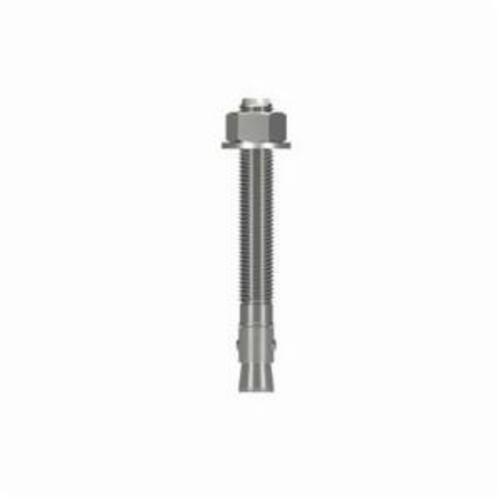

Simpson Strong-Tie WA756146SS Wedge-All Wedge Anchor, 3/4 in Dia, 6-1/4 in OAL, 4-3/8 in L Thread, 316 Stainless Steel
Login For Price
- Item Features
- Technical Specifications
- Resources
- Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
- 740 lb at 2000 psi and 1190 lb at 4000 psi allowable tension load
- One-piece, wrap-around clip ensures uniform holding capacity
- Threaded end is chamfered for ease of starting nut
- 316 stainless steel nut/washer/clip
- The minimum concrete thickness is 1-1/2 times the embedment depth
- The allowable loads are based on a safety factor of 4
- 7/8 in minimum fixture hole
- 150 ft-lb installation torque
- 6560 ultimate and 1345 lb allowable shear strength
- Code listed under IBC/IRC for grout-filled CMU per ICC-ESESR-1396
- 740 lb at 2000 psi and 1190 lb at 4000 psi allowable tension load
- One-piece, wrap-around clip ensures uniform holding capacity
- Threaded end is chamfered for ease of starting nut
- 316 stainless steel nut/washer/clip
- The minimum concrete thickness is 1-1/2 times the embedment depth
- The allowable loads are based on a safety factor of 4
- 7/8 in minimum fixture hole
- 150 ft-lb installation torque
- 6560 ultimate and 1345 lb allowable shear strength
- Diameter:3/4 inDrill Size:3/4 inHead Size:1-1/8 inMaterial:316 Stainless SteelMinimum Embedment Depth:3-3/8 inOverall Length:6-1/4 inSeries:Wedge-All, Wedge-All®Shear Strength:850 lbTensile Strength:965 lbThread Length:4-3/8 in
